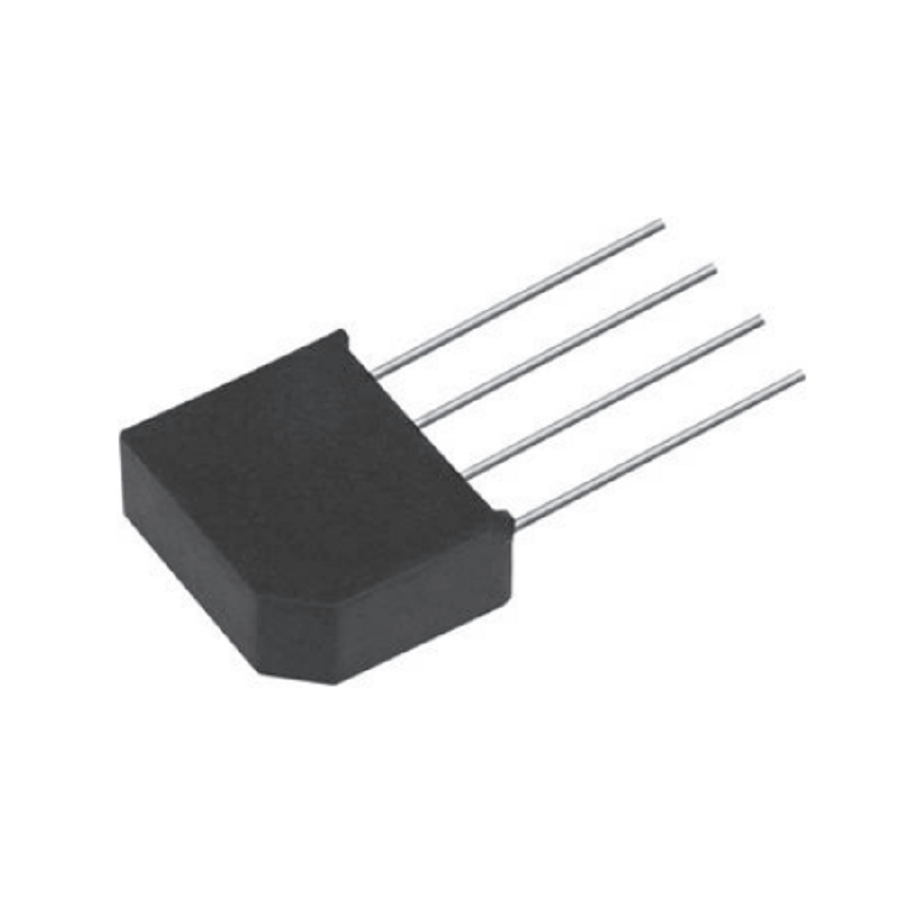

VS-2KBP06
Manufacturer:
Vishay
Mfr.Part #:
VS-2KBP06
Datasheet:
Description:
Bridge Rectifiers D-44 Through Hole Single Phase 600 V Forward Current:2 A Forward Voltage:1 V
| Parameter | Value |
|---|---|
| Capacitance | |
| Length | 17.5 mm |
| Width | 6.8 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 15 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Single Phase |
| Current Rating | 2 A |
| Forward Current | 2 A |
| Forward Voltage | 1 V |
| Average Rectified Current | 2 A |
| Max Reverse Leakage Current | 10 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Element Configuration | Single |
| Max Surge Current | 63 A |
| Forward Surge Current (Ifsm) | 63 A |
| Reverse Voltage | 600 V |
| Reverse Current | 10 µA |
| Recovery Time | |
| Peak Reverse Voltage | 600 V |
Stock: 436
Distributors
pcbx
pcbxUnit Price$1.31403
Ext.Price$1.31403
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.31403 | $1.31403 |
| 10 | $0.80706 | $8.07060 |
| 25 | $0.72381 | $18.09525 |
| 50 | $0.64915 | $32.45750 |
| 100 | $0.58220 | $58.22000 |
| 300 | $0.57272 | $171.81600 |
| 500 | $0.56340 | $281.70000 |
