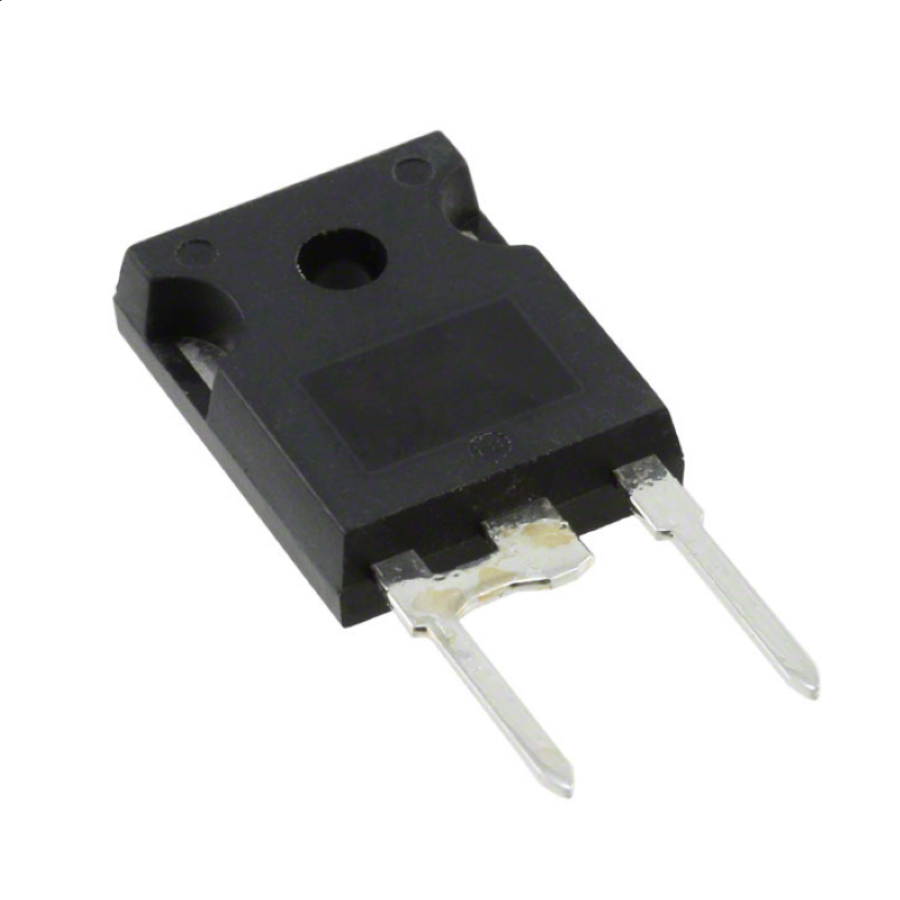

VS-30EPF06PBF
Manufacturer:
Vishay
Mfr.Part #:
VS-30EPF06PBF
Datasheet:
Description:
Rectifier Diodes TO-247AC Through Hole Fast Recovery Rectifiers Single Forward Current:30 A Forward Voltage:1.41 V Reverse Voltage:600 V
| Parameter | Value |
|---|---|
| Length | 15.9 mm |
| Width | 5.3 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 20.7 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Fast Recovery Rectifiers |
| Forward Current | 30 A |
| Forward Voltage | 1.41 V |
| Reverse Recovery Time | 160 ns |
| Average Rectified Current | 30 A |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Element Configuration | Single |
| Max Surge Current | 350 A |
| Natural Thermal Resistance | 0.2 °C/W |
| Forward Surge Current (Ifsm) | 350 A |
| Reverse Voltage | 600 V |
| Peak Non-Repetitive Surge Current | 350 A |
| Reverse Current | 100 µA |
| Recovery Time | 160 ns |
| Schedule B | 8541100080 |
