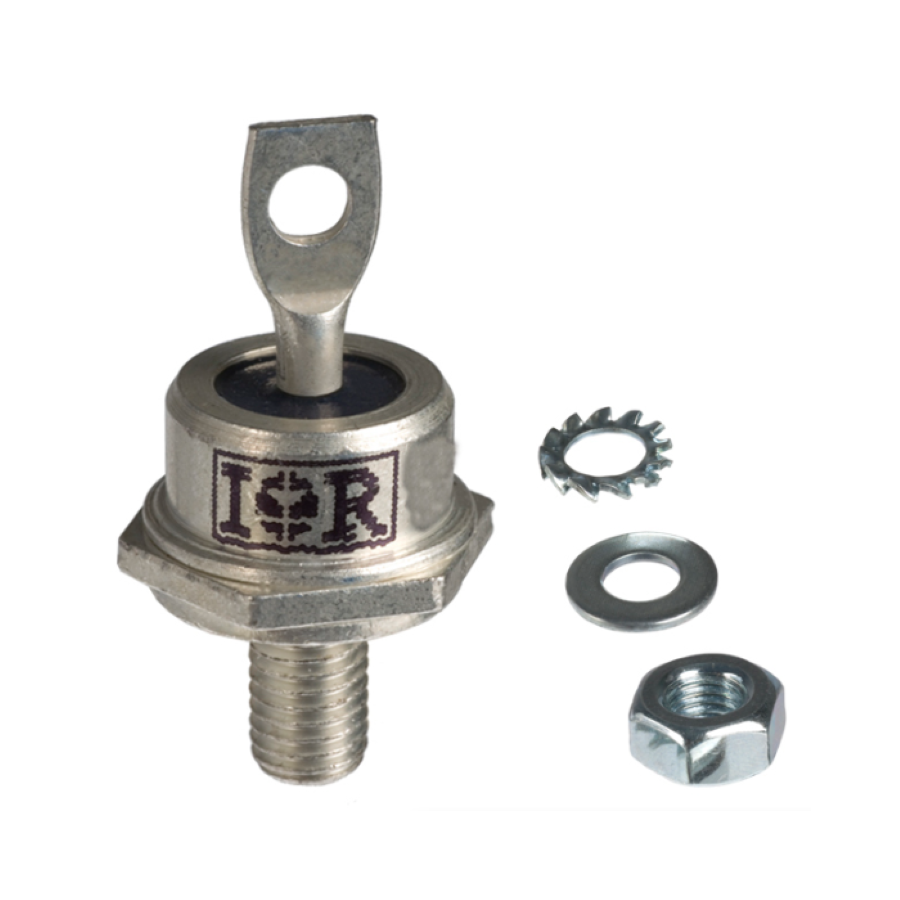

VS-40HFR120
Manufacturer:
Vishay
Mfr.Part #:
VS-40HFR120
Datasheet:
Description:
Rectifier Diodes DO-203AB Chassis, Stud Standard Recovery Rectifiers Single Forward Current:40 A Forward Voltage:1.3 V Reverse Voltage:1.2 kV
| Parameter | Value |
|---|---|
| Length | 20.08 mm |
| Width | 17.4 mm |
| Max Operating Temperature | 190 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 22.9 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Standard Recovery Rectifiers |
| Forward Current | 40 A |
| Forward Voltage | 1.3 V |
| Average Rectified Current | 40 A |
| Max Reverse Voltage (DC) | 1.2 kV |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2 kV |
| Element Configuration | Single |
| Max Surge Current | 595 A |
| Natural Thermal Resistance | 0.25 °C/W |
| Forward Surge Current (Ifsm) | 595 A |
| Reverse Voltage | 1.2 kV |
| Peak Non-Repetitive Surge Current | 595 A |
| Reverse Current | 9 mA |
Stock: 1
Distributors
pcbx
pcbxUnit Price$12.81581
Ext.Price$12.81581
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $12.81581 | $12.81581 |
| 10 | $12.43478 | $124.34780 |
