VY1222M43Y5UC63V0
Manufacturer:
Vishay
Mfr.Part #:
VY1222M43Y5UC63V0
Datasheet:
Description:

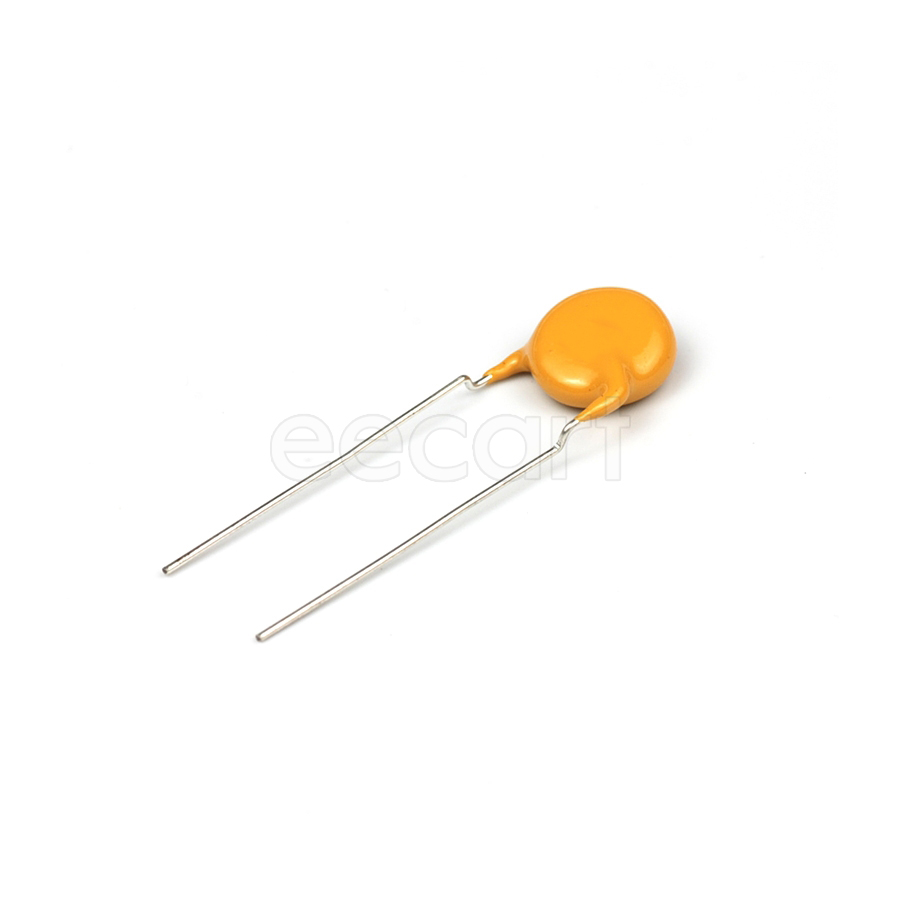

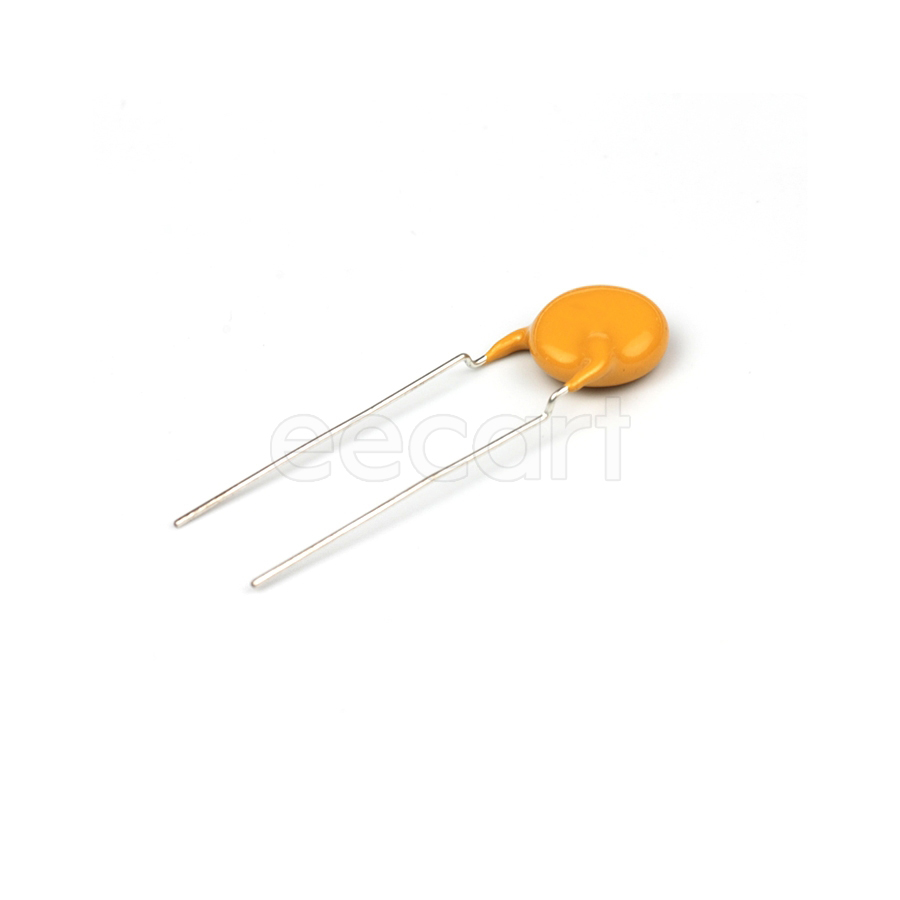

Ceramic Capacitors 11.00mmD×15.00mmH Through Hole 2.2 nF 20 % 760 V
| Parameter | Value |
|---|---|
| Capacitance | 2.2 nF |
| Tolerance | 20 % |
| Height - Seated (Max) | 15 mm |
| Termination | Radial |
| Diameter | 11 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Y5U |
| Dissipation Factor | 2.5 % |
| Packaging | Bulk |
| Voltage Rating | 760 V |
| Depth | 5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 10.0076 mm |
| REACH SVHC | Unknown |
| Dielectric Material | Ceramic |
| Ratings | X1, Y1 |
| Lead/Base Style | Kinked |
| Schedule B | 8532230060 |
Stock: 8281
Distributors
pcbx
pcbxUnit Price$0.27529
Ext.Price$0.27529
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27529 | $0.27529 |
| 10 | $0.10601 | $1.06010 |
| 50 | $0.09893 | $4.94650 |
| 100 | $0.09233 | $9.23300 |
| 500 | $0.08139 | $40.69500 |
| 1000 | $0.07575 | $75.75000 |
| 3000 | $0.07382 | $221.46000 |
| 5000 | $0.07194 | $359.70000 |
| 10000 | $0.07010 | $701.00000 |
