VZH471M1CTR-0810
Manufacturer:
Lelon
Mfr.Part #:
VZH471M1CTR-0810
Datasheet:
Description:

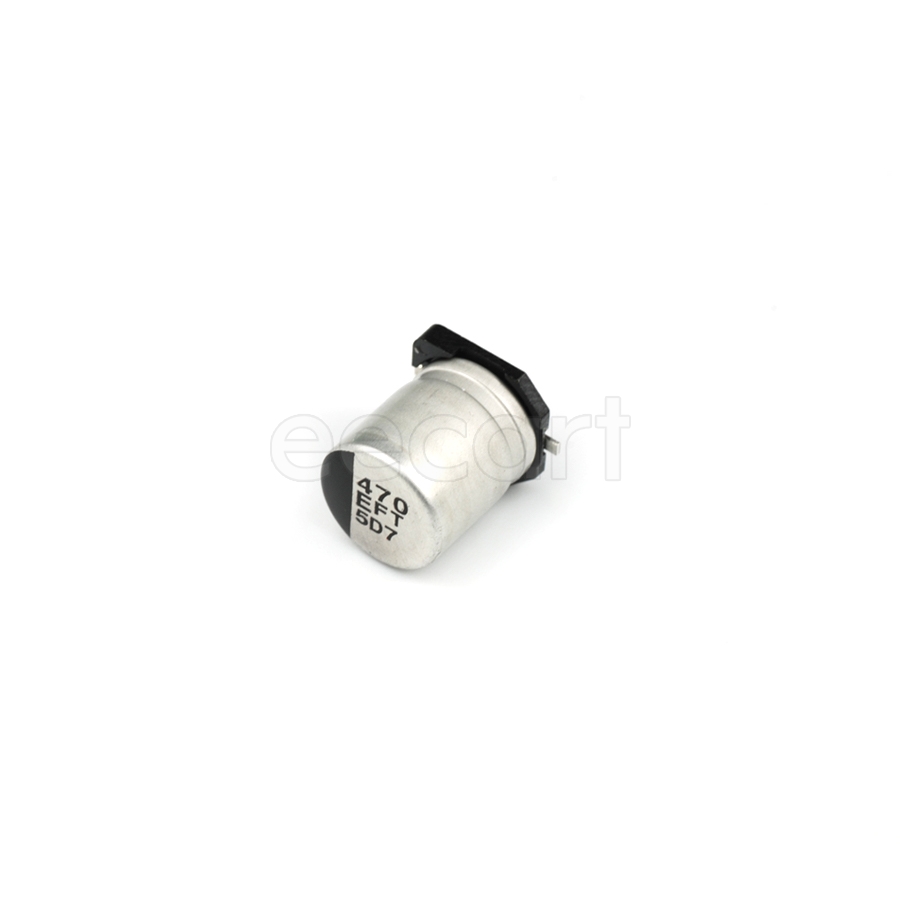

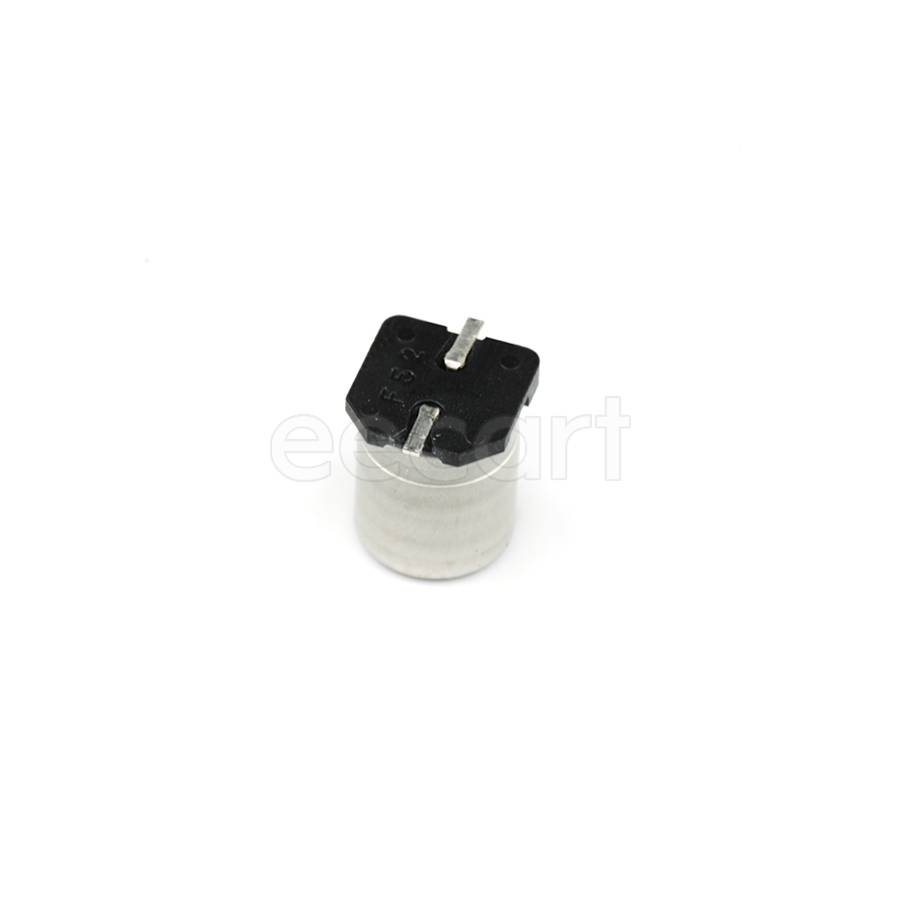

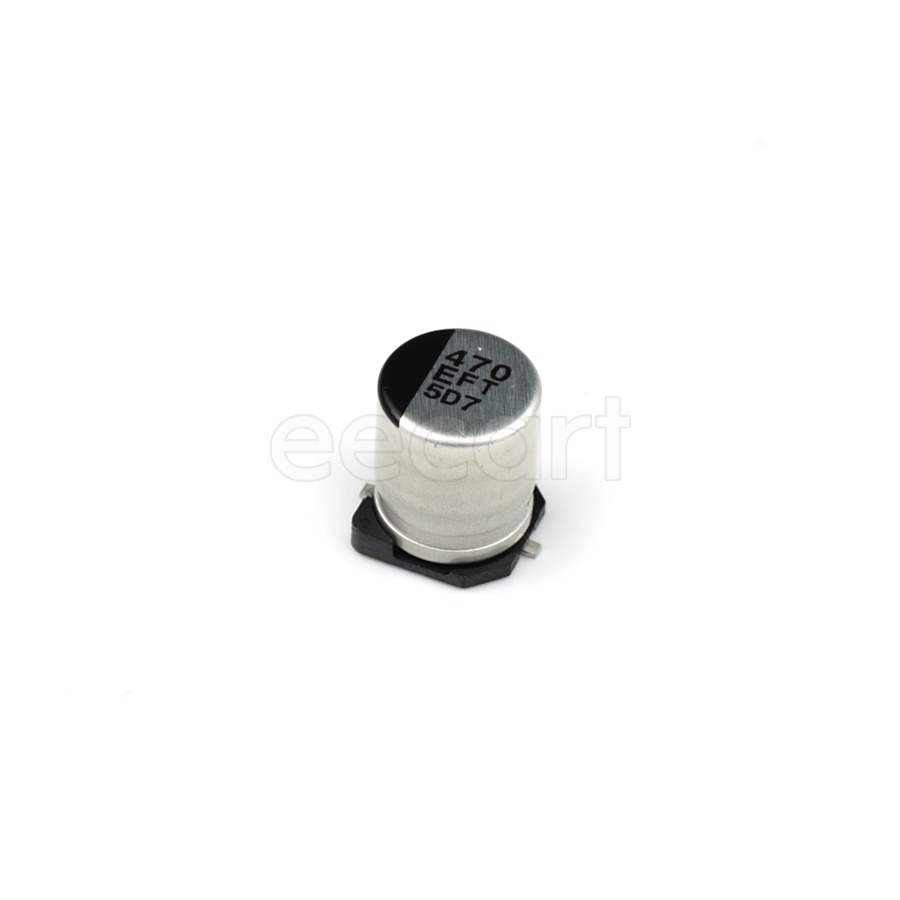

Aluminum Electrolytic Capacitors SMD,8.00mm×10.00mm SMD/SMT 470 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 5000 Hours |
| Ripple Current | 450 mA |
| Length | 10 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.22 % |
| Height | 8.4 mm |
| Voltage Rating | 16 V |
| RoHS | Compliant |
| Diameter | 8 mm |
| Packaging | Reel |
| Polarity | Polar |
| Height - Seated (Max) | 10.5 mm |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
Stock: 10759
Distributors
pcbx
pcbxUnit Price$0.10454
Ext.Price$0.10454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10454 | $0.10454 |
| 10 | $0.09258 | $0.92580 |
| 50 | $0.08198 | $4.09900 |
| 100 | $0.07151 | $7.15100 |
| 500 | $0.06237 | $31.18500 |
| 1000 | $0.05897 | $58.97000 |
| 3000 | $0.05576 | $167.28000 |
| 5000 | $0.05272 | $263.60000 |
