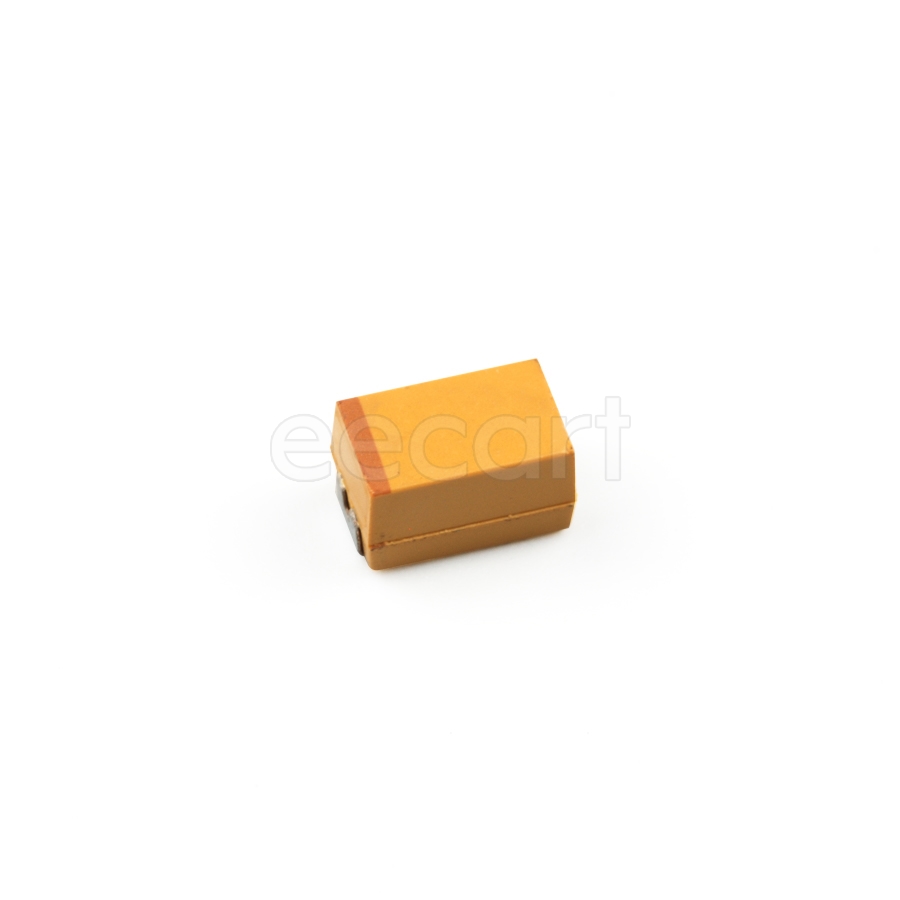

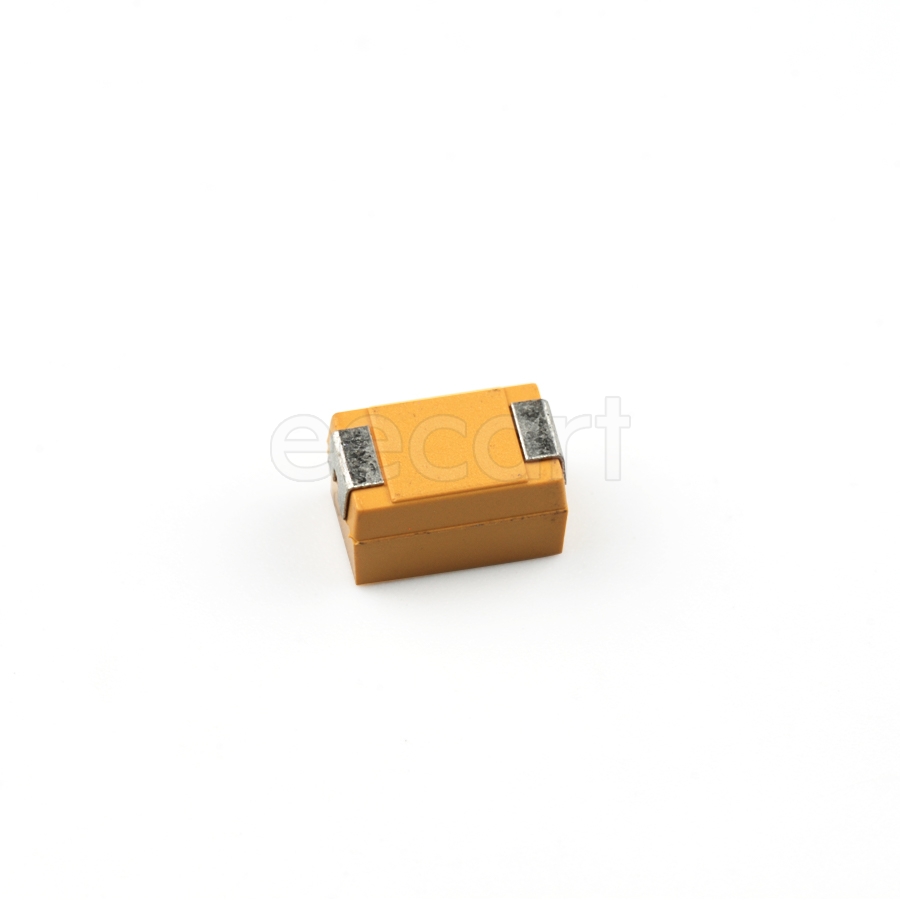

293D336X9025E2TE3
Manufacturer:
Vishay
Mfr.Part #:
293D336X9025E2TE3
Datasheet:
Description:
Tantalum Capacitors 2917(7343 Metric) SMD/SMT 33 µF 10 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 33 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 600 mΩ |
| Ripple Current | 460 mA |
| Height - Seated (Max) | 4.3 mm |
| Length | 7.3 mm |
| Width | 4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Number of Pins | 2 |
| Leakage Current | 8.3 µA |
| Dissipation Factor | 6 % |
| Height | 4 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Depth | 4.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | Unknown |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Type | Molded |
| Schedule B | 8532210050 |
Stock: 331
Distributors
pcbx
pcbxUnit Price$0.93815
Ext.Price$0.93815
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.93815 | $0.93815 |
| 10 | $0.62062 | $6.20620 |
| 25 | $0.55399 | $13.84975 |
| 50 | $0.49451 | $24.72550 |
| 100 | $0.45554 | $45.55400 |
| 300 | $0.40506 | $121.51800 |
