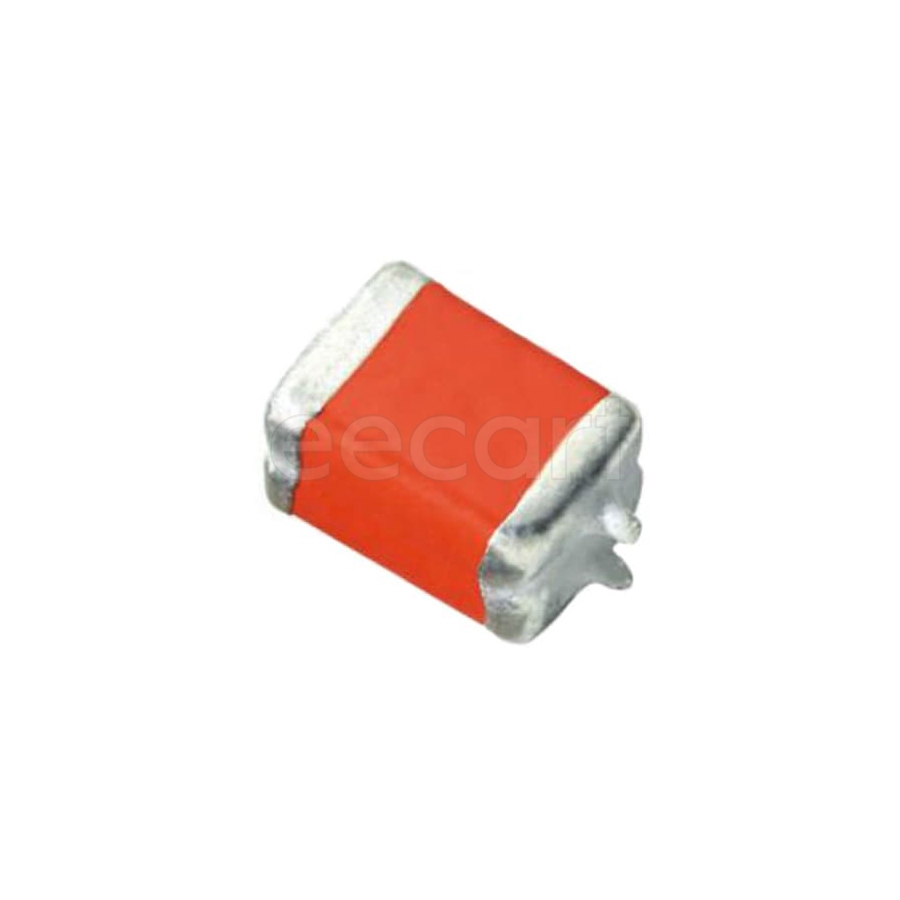

597D108X96R3R2T
Manufacturer:
Vishay
Mfr.Part #:
597D108X96R3R2T
Datasheet:
Description:
Tantalum Capacitors 3024(7660 Metric) SMD/SMT 1 mF 10 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 1 mF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 20 mΩ |
| Height - Seated (Max) | 3.99 mm |
| Length | 7.6 mm |
| Width | 5.9944 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 3024 |
| Case Code (Metric) | 7660 |
| Number of Pins | 2 |
| Leakage Current | 63 µA |
| Dissipation Factor | 8 % |
| Height | 3.6 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 6.3 V |
| Weight | 274.990374 mg |
| Features | General Purpose |
| Type | Conformal Coated |
| Schedule B | 8532210050 |
Stock: 4952
Distributors
pcbx
pcbxUnit Price$6.50125
Ext.Price$6.50125
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.50125 | $6.50125 |
| 10 | $4.95171 | $49.51710 |
| 25 | $4.63197 | $115.79925 |
| 50 | $4.33288 | $216.64400 |
| 100 | $4.17384 | $417.38400 |
| 300 | $3.40999 | $1022.99700 |
