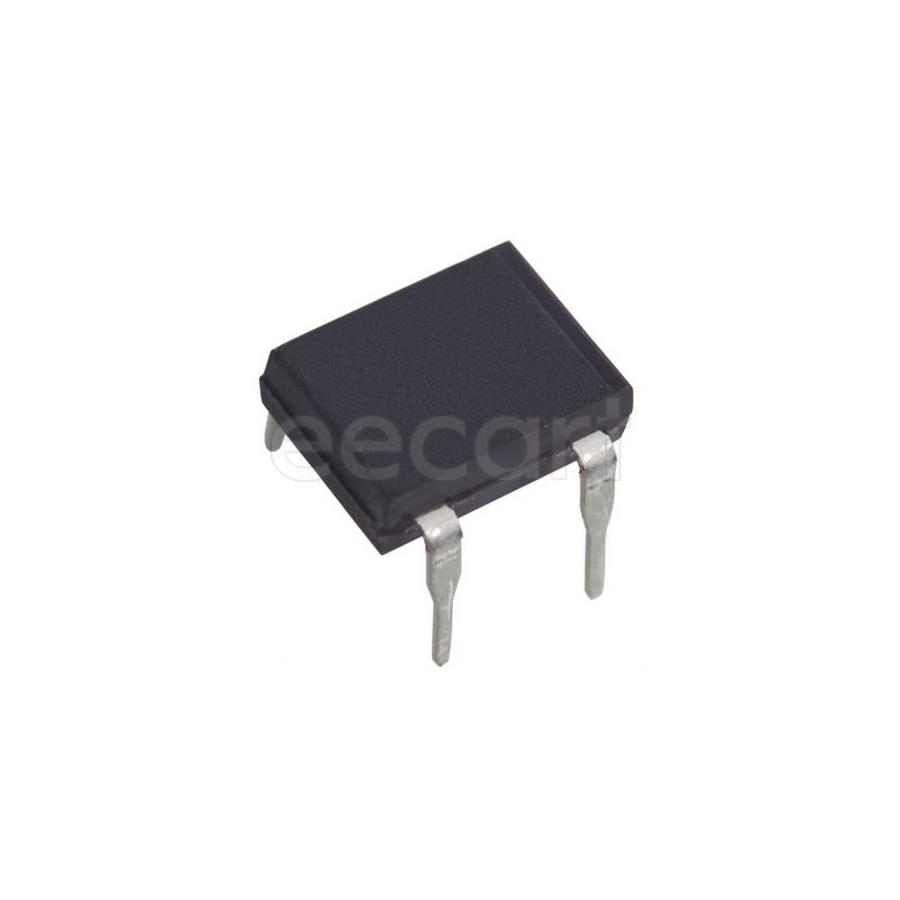

DF10M-E3/45
Manufacturer:
Vishay
Mfr.Part #:
DF10M-E3/45
Datasheet:
Description:
Bridge Rectifiers DFM Through Hole Single Phase Bridge 1 kV Forward Current:1 A Forward Voltage:1.1 V
| Parameter | Value |
|---|---|
| Capacitance | 25 pF |
| Length | 8.51 mm |
| Width | 6.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 5.33 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Single Phase Bridge |
| Number of Elements | 1 |
| Current Rating | 4 A |
| Forward Current | 1 A |
| Forward Voltage | 1.1 V |
| Average Rectified Current | 1 A |
| Breakdown Voltage | 1 kV |
| Max Reverse Leakage Current | 5 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 1 kV |
| Element Configuration | Single |
| Max Surge Current | 50 A |
| Forward Surge Current (Ifsm) | 50 A |
| Reverse Voltage | 1 kV |
| Max Junction Temperature (Tj) | 150 °C |
| Peak Non-Repetitive Surge Current | 50 A |
| Reverse Current | 5 µA |
| Peak Reverse Voltage | 1 kV |
Stock: 9
Distributors
pcbx
pcbxUnit Price$0.38323
Ext.Price$0.38323
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38323 | $0.38323 |
| 10 | $0.35729 | $3.57290 |
| 25 | $0.33311 | $8.32775 |
| 50 | $0.31056 | $15.52800 |
| 100 | $0.28621 | $28.62100 |
| 300 | $0.26377 | $79.13100 |
| 500 | $0.24308 | $121.54000 |
| 1000 | $0.23419 | $234.19000 |
| 3000 | $0.22562 | $676.86000 |
| 5000 | $0.21736 | $1086.80000 |
