LL43-GS08
Manufacturer:
Vishay
Mfr.Part #:
LL43-GS08
Datasheet:
Description:

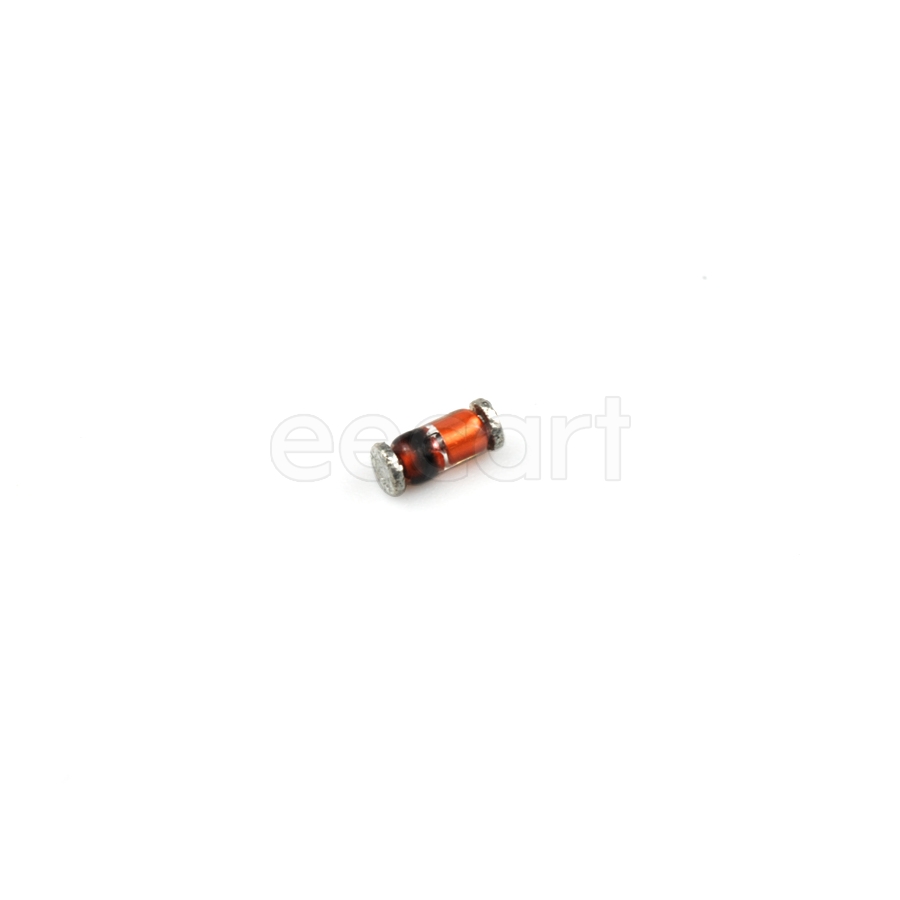

Schottky Diodes SOD-80 SMD/SMT Single Forward Current:200 mA Forward Voltage:1 V Max Repetitive Reverse Voltage (Vrrm):30 V Max Forward Surge Current (Ifsm):4 A
| Parameter | Value |
|---|---|
| Capacitance | 7 pF |
| Length | 3.7 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 1.6 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Schottky |
| Forward Current | 200 mA |
| Forward Voltage | 1 V |
| Reverse Recovery Time | 5 ns |
| Average Rectified Current | 200 mA |
| Max Reverse Leakage Current | 500 nA |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Single |
| Max Surge Current | 4 A |
| Forward Surge Current (Ifsm) | 4 A |
| Reverse Voltage | 30 V |
| Peak Non-Repetitive Surge Current | 4 A |
| Reverse Current | 500 nA |
| Recovery Time | 5 ns |
| Schedule B | 8541100070 |
Stock: 9704
Distributors
pcbx
pcbxUnit Price$0.25042
Ext.Price$0.25042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25042 | $0.25042 |
| 10 | $0.15328 | $1.53280 |
| 50 | $0.12172 | $6.08600 |
| 100 | $0.09666 | $9.66600 |
| 500 | $0.07198 | $35.99000 |
| 1000 | $0.06398 | $63.98000 |
