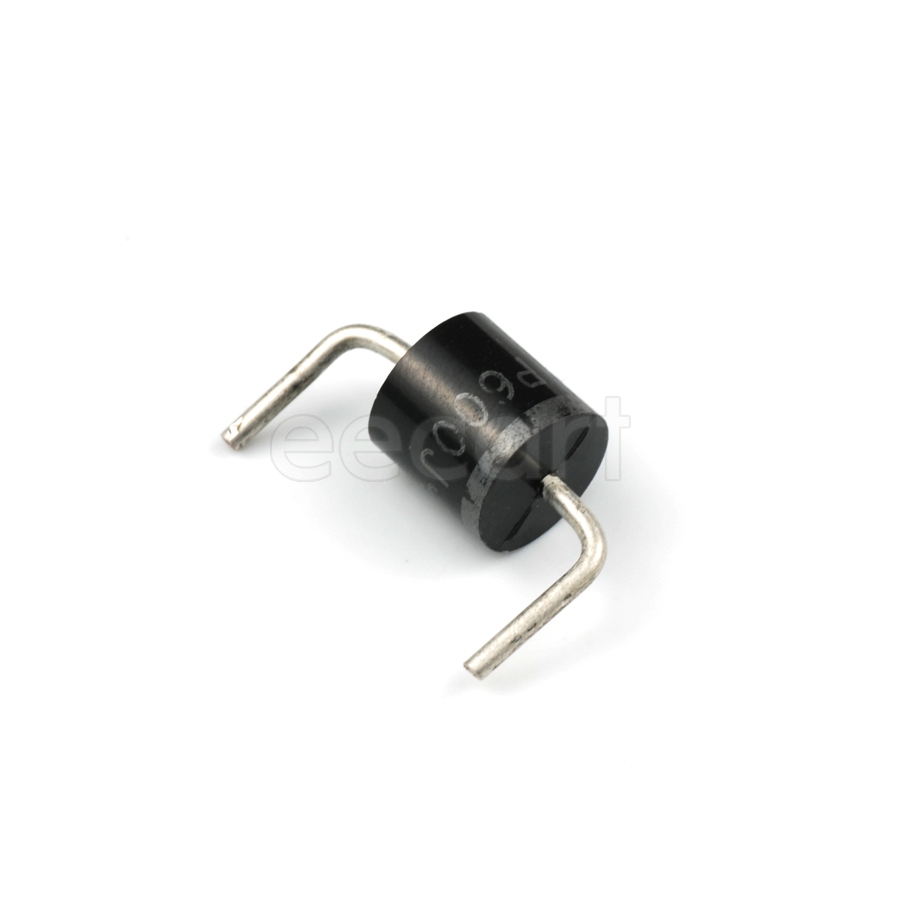

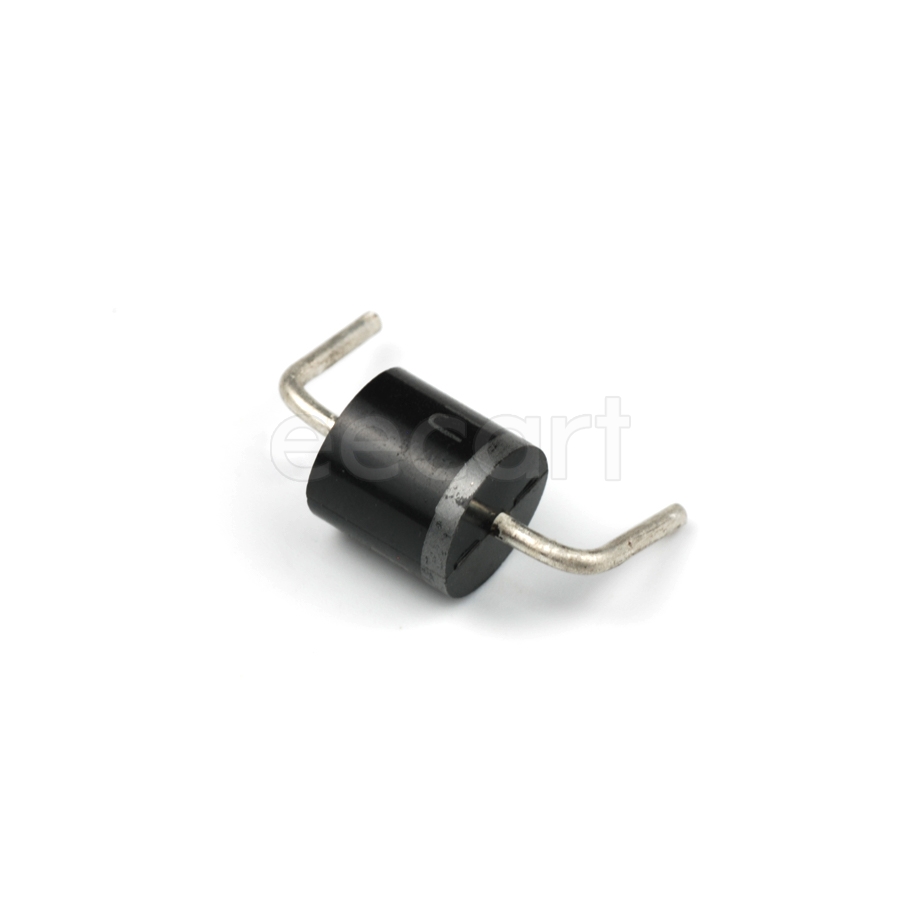

P600J-E3/73
Manufacturer:
Vishay
Mfr.Part #:
P600J-E3/73
Datasheet:
Description:
Rectifier Diodes P600 Through Hole Standard Single Forward Current:22 A Forward Voltage:1.3 V Reverse Voltage:600 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -50 °C |
| Number of Pins | 2 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Forward Current | 22 A |
| Forward Voltage | 1.3 V |
| Reverse Recovery Time | 2.5 µs |
| Average Rectified Current | 6 A |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Element Configuration | Single |
| Max Surge Current | 400 A |
| Forward Surge Current (Ifsm) | 400 A |
| Reverse Voltage | 600 V |
| Peak Non-Repetitive Surge Current | 400 A |
| Reverse Current | 5 µA |
| Recovery Time | 2.5 µs |
| Schedule B | 8541100080 |
| Type | Standard |
| Capacitance | 150 pF |
Stock: 109
Distributors
pcbx
pcbxUnit Price$0.71345
Ext.Price$0.71345
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71345 | $0.71345 |
| 10 | $0.54436 | $5.44360 |
| 25 | $0.51131 | $12.78275 |
| 50 | $0.48027 | $24.01350 |
| 100 | $0.45110 | $45.11000 |
| 300 | $0.22545 | $67.63500 |
