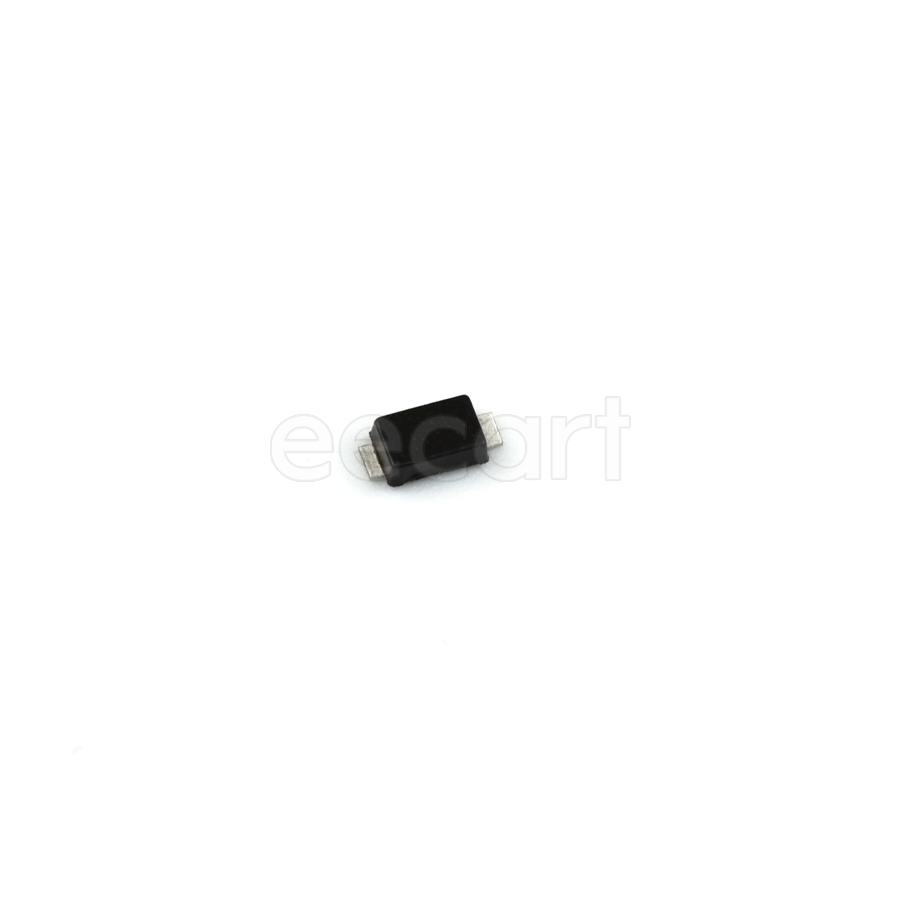

RS07J-GS08
Manufacturer:
Vishay
Mfr.Part #:
RS07J-GS08
Datasheet:
Description:
Rectifier Diodes DO-219AB SMD/SMT Standard Single Forward Current:1.4 A Forward Voltage:1.15 V Reverse Voltage:600 V
| Parameter | Value |
|---|---|
| Length | 2.8 mm |
| Width | 1.8 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 980 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 0.15 g |
| Contact Plating | Tin |
| Forward Current | 1.4 A |
| Forward Voltage | 1.15 V |
| Reverse Recovery Time | 150 ns |
| Average Rectified Current | 500 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Element Configuration | Single |
| Max Surge Current | 30 A |
| Peak Non-Repetitive Surge Current | 30 A |
| Reverse Current | 10 µA |
| Recovery Time | 250 ns |
| Schedule B | 8541100080 |
| Type | Standard |
| Reverse Voltage | 600 V |
| Capacitance | 9 pF |
Stock: 1678
Distributors
pcbx
pcbxUnit Price$0.22570
Ext.Price$0.22570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22570 | $0.22570 |
| 10 | $0.17611 | $1.76110 |
| 50 | $0.14414 | $7.20700 |
| 100 | $0.11798 | $11.79800 |
| 500 | $0.09063 | $45.31500 |
| 1000 | $0.07198 | $71.98000 |
| 3000 | $0.06540 | $196.20000 |
| 5000 | $0.05942 | $297.10000 |
| 10000 | $0.05694 | $569.40000 |
| 30000 | $0.05694 | $1708.20000 |
