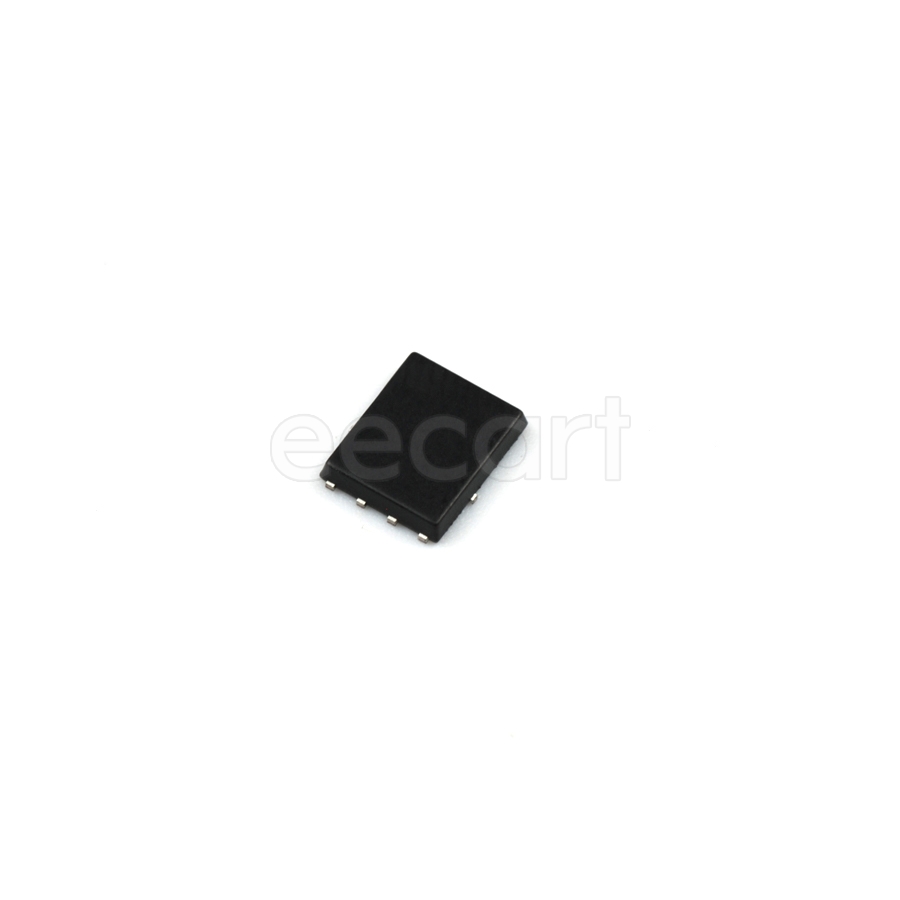

SIDR680DP-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SIDR680DP-T1-GE3
Datasheet:
Description:
MOSFETs PowerPAK SO-8DC SMD/SMT N-Channel number of channels:1 125 W 80 V Continuous Drain Current (ID):100 A 69.5 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 125 W |
| Number of Channels | 1 |
| Input capacitance | 5.15 nF |
| Continuous Drain Current (ID) | 100 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 69.5 nC |
| Drain to Source Resistance | 2.4 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 80 V |
| Gate to Source Threshold Voltage | 2 V |
Stock: 11922
Distributors
pcbx
pcbxUnit Price$1.92094
Ext.Price$1.92094
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.92094 | $1.92094 |
| 10 | $1.46284 | $14.62840 |
| 25 | $1.30144 | $32.53600 |
| 50 | $1.15784 | $57.89200 |
| 100 | $1.03009 | $103.00900 |
| 300 | $0.95840 | $287.52000 |
| 500 | $0.89170 | $445.85000 |
| 1000 | $0.80598 | $805.98000 |
| 3000 | $0.72850 | $2185.50000 |
