SQJ963EP-T1_GE3
Manufacturer:
Vishay
Mfr.Part #:
SQJ963EP-T1_GE3
Datasheet:
Description:

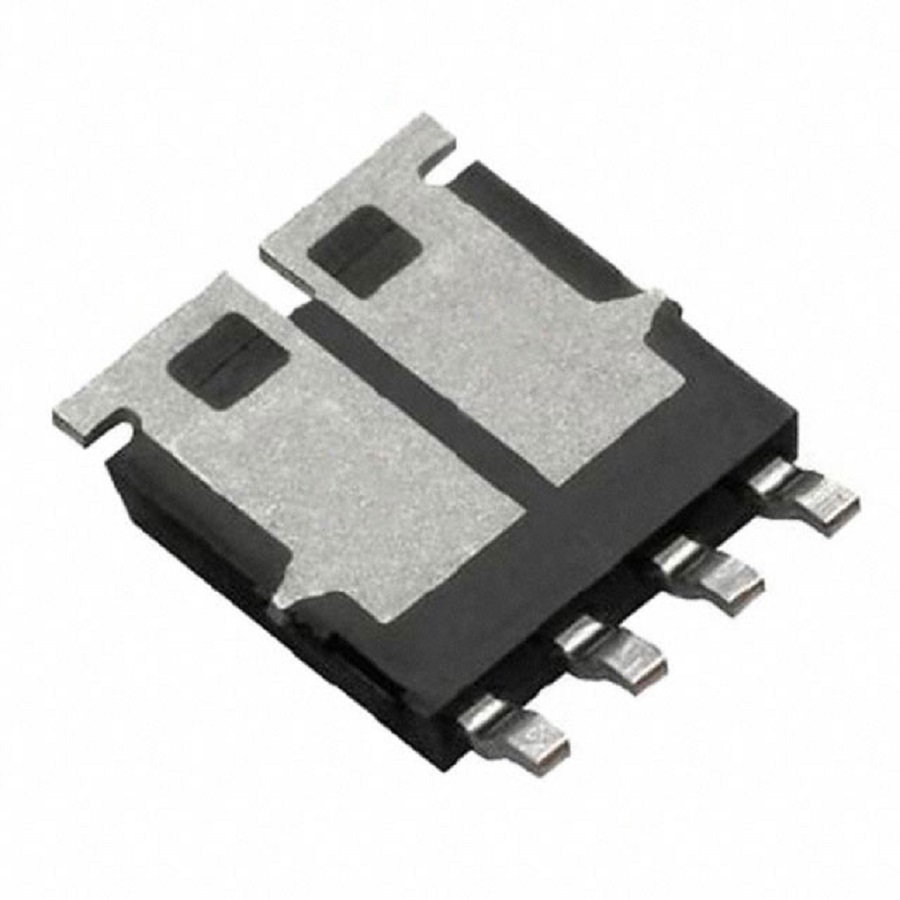

MOSFETs PowerPAK SO-8 Dual SMD/SMT P-Channel number of channels:2 27 W 60 V Continuous Drain Current (ID):8 A 40 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 2 |
| Max Power Dissipation | 27 W |
| Power Dissipation | 27 W |
| Number of Channels | 2 |
| Input capacitance | 11.4 nF |
| Continuous Drain Current (ID) | 8 A |
| Drain to Source Voltage (Vdss) | -60 V |
| FET Type(Transistor Polarity) | P-Channel |
| Turn-On Delay Time | 11 ns |
| Turn-Off Delay Time | 36 ns |
| Element Configuration | Dual |
| Rise Time | 13 ns |
| Gate Charge | 40 nC |
| Drain to Source Resistance | 67 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| Gate to Source Threshold Voltage | 2.5 V |
Stock: 1846
Distributors
pcbx
pcbxUnit Price$1.60772
Ext.Price$1.60772
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60772 | $1.60772 |
| 10 | $1.03734 | $10.37340 |
| 25 | $0.91443 | $22.86075 |
| 50 | $0.80608 | $40.30400 |
| 100 | $0.71057 | $71.05700 |
| 300 | $0.63685 | $191.05500 |
| 500 | $0.57078 | $285.39000 |
| 1000 | $0.56861 | $568.61000 |
| 3000 | $0.46882 | $1406.46000 |
