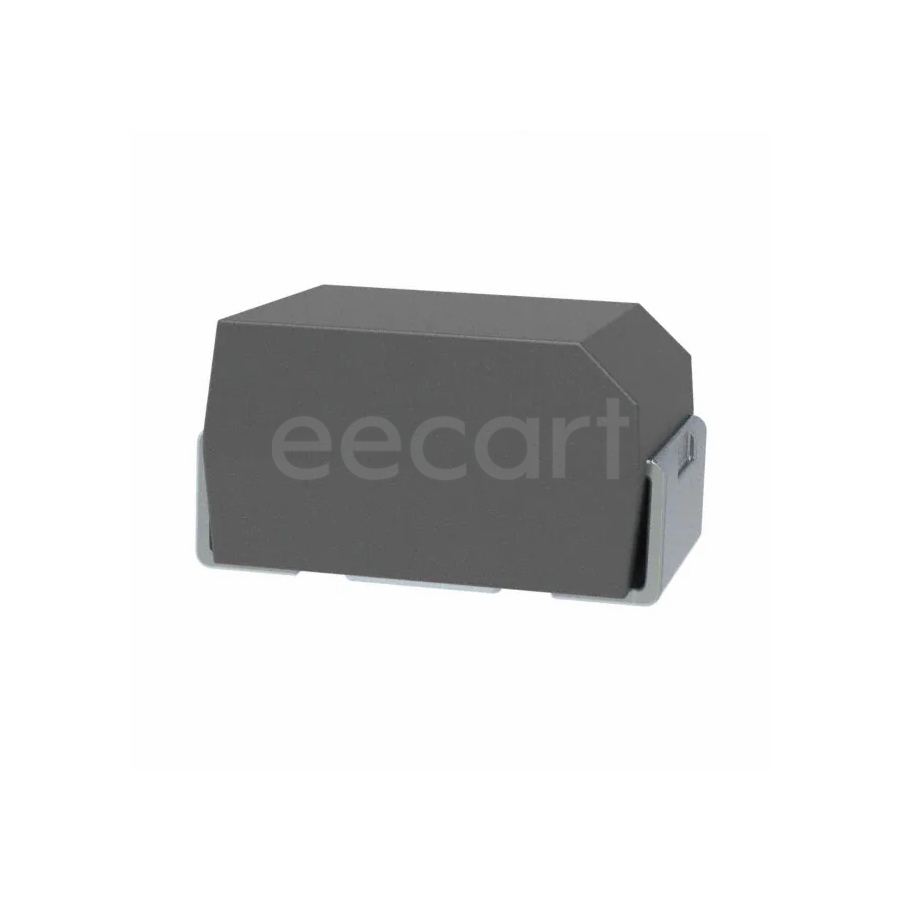

T55T226M010C0070
Manufacturer:
Vishay
Mfr.Part #:
T55T226M010C0070
Datasheet:
Description:
Polymer Capacitors 1411(3528 Metric) SMD/SMT 22 µF 20 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 70 mΩ |
| Ripple Current | 1 A |
| Height - Seated (Max) | 1.2 mm |
| Length | 3.5 mm |
| Width | 2.794 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Leakage Current | 22 µA |
| Dissipation Factor | 10 % |
| Height | 1.2 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Depth | 2.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Features | General Purpose |
| Schedule B | 8532210050 |
| RoHS | Compliant |
Stock: 1854
Distributors
pcbx
pcbxUnit Price$0.50697
Ext.Price$0.50697
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50697 | $0.50697 |
| 10 | $0.24622 | $2.46220 |
| 25 | $0.23827 | $5.95675 |
| 50 | $0.23058 | $11.52900 |
| 100 | $0.22314 | $22.31400 |
| 300 | $0.20487 | $61.46100 |
| 500 | $0.18809 | $94.04500 |
| 1000 | $0.17611 | $176.11000 |
| 3000 | $0.15560 | $466.80000 |
