TR3C476K016C0350
Manufacturer:
Vishay
Mfr.Part #:
TR3C476K016C0350
Datasheet:
Description:

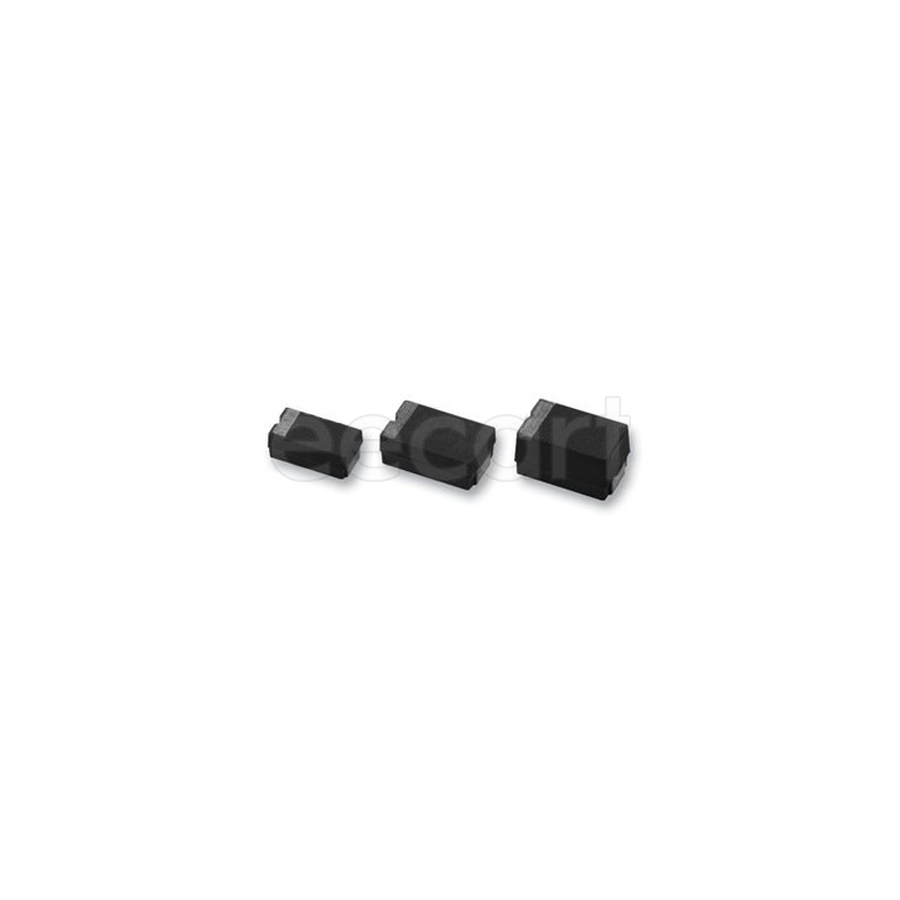

Tantalum Capacitors 2412(6032 Metric) SMD/SMT 47 µF 10 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 350 mΩ |
| Ripple Current | 560 mA |
| Length | 6 mm |
| Width | 3.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Number of Pins | 2 |
| Leakage Current | 7.5 µA |
| Dissipation Factor | 6 % |
| Height | 2.5 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Depth | 3.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 16 V |
| REACH SVHC | Unknown |
| Dielectric Material | Tantalum |
| Type | Molded |
| Features | General Purpose |
| Life (Hours) | 1000 Hours |
Stock: 502
Distributors
pcbx
pcbxUnit Price$0.60700
Ext.Price$0.60700
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60700 | $0.60700 |
| 10 | $0.30264 | $3.02640 |
| 25 | $0.29323 | $7.33075 |
| 50 | $0.28412 | $14.20600 |
| 100 | $0.27529 | $27.52900 |
| 300 | $0.24974 | $74.92200 |
| 500 | $0.22656 | $113.28000 |
| 1000 | $0.20860 | $208.60000 |
| 3000 | $0.20031 | $600.93000 |
| 5000 | $0.19236 | $961.80000 |
| 10000 | $0.18296 | $1829.60000 |
