V15P45S-M3/86A
Manufacturer:
Vishay
Mfr.Part #:
V15P45S-M3/86A
Datasheet:
Description:

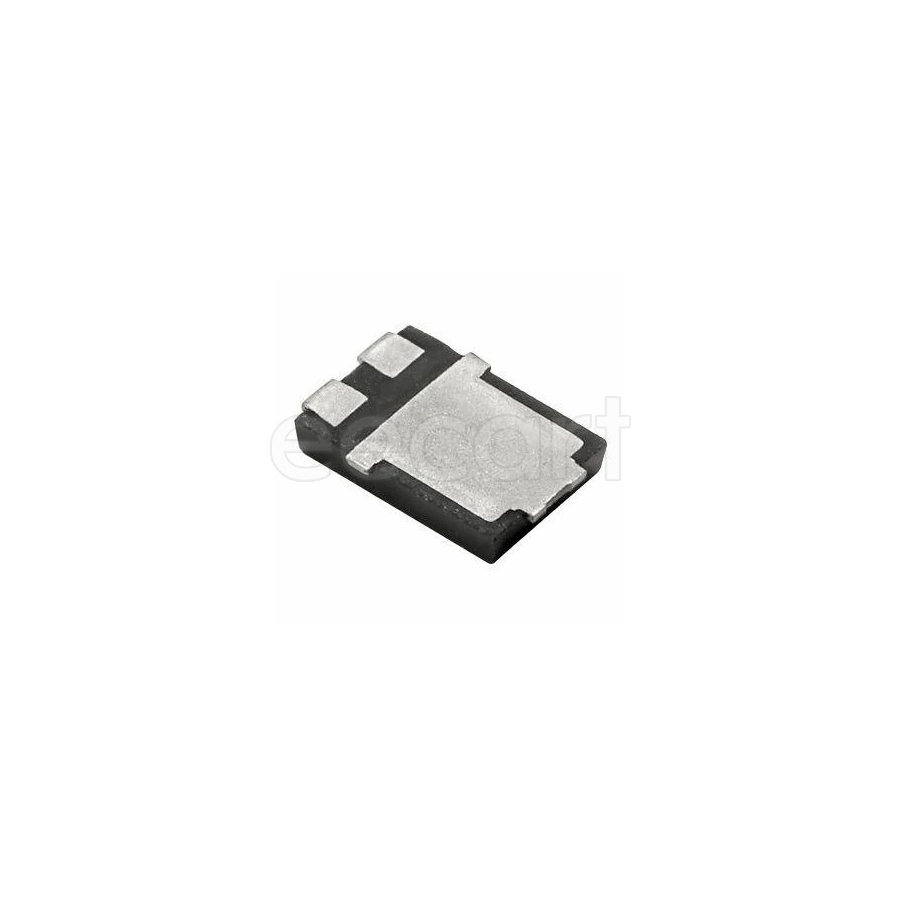

Schottky Diodes TO-277A SMD/SMT Common Anode Forward Current:15 A Forward Voltage:580 mV Max Repetitive Reverse Voltage (Vrrm):45 V Max Forward Surge Current (Ifsm):210 A
| Parameter | Value |
|---|---|
| Length | 4.35 mm |
| Width | 6.15 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 800 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Forward Current | 15 A |
| Forward Voltage | 580 mV |
| Average Rectified Current | 15 A |
| Max Reverse Leakage Current | 1.5 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 45 V |
| Element Configuration | Common Anode |
| Max Surge Current | 210 A |
| Forward Surge Current (Ifsm) | 210 A |
| Reverse Voltage | 45 V |
| Peak Non-Repetitive Surge Current | 210 A |
| Reverse Current | 1.5 mA |
| Schedule B | 8541100080 |
Stock: 2014
Distributors
pcbx
pcbxUnit Price$0.86348
Ext.Price$0.86348
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86348 | $0.86348 |
| 10 | $0.55570 | $5.55700 |
| 25 | $0.50951 | $12.73775 |
| 50 | $0.46716 | $23.35800 |
| 100 | $0.42832 | $42.83200 |
| 300 | $0.38367 | $115.10100 |
| 500 | $0.34368 | $171.84000 |
| 1000 | $0.30093 | $300.93000 |
| 3000 | $0.24023 | $720.69000 |
| 5000 | $0.23853 | $1192.65000 |
