V8PAN50-M3/I
Manufacturer:
Vishay
Mfr.Part #:
V8PAN50-M3/I
Datasheet:
Description:

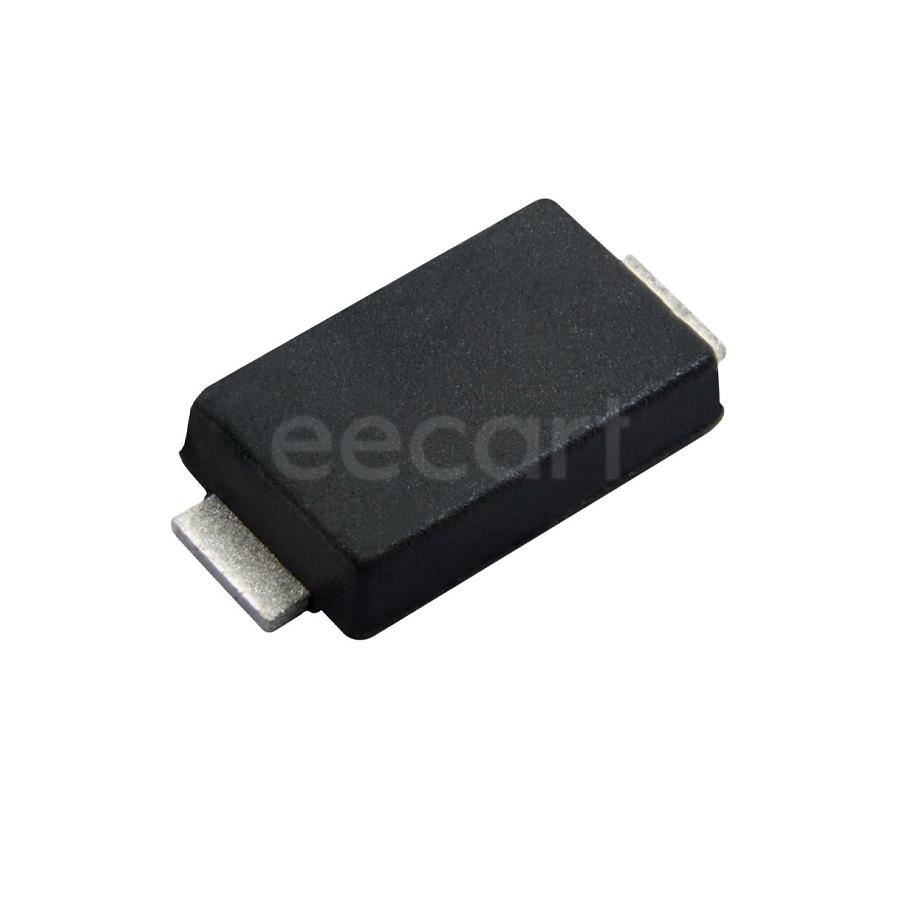

Schottky Diodes DO-221BC SMD/SMT Single Forward Current:8 A Forward Voltage:480 mV Max Repetitive Reverse Voltage (Vrrm):50 V Max Forward Surge Current (Ifsm):120 A
| Parameter | Value |
|---|---|
| Length | 4.35 mm |
| Width | 2.7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 1 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 32.006612 mg |
| Type | Schottky |
| Forward Current | 8 A |
| Forward Voltage | 480 mV |
| Average Rectified Current | 3.7 A |
| Max Repetitive Reverse Voltage (Vrrm) | 50 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 120 A |
| Reverse Voltage | 50 V |
| Reverse Current | 1.5 mA |
| Recovery Time | 500 ns |
| Reverse Voltage (DC) | 50 V |
| Schedule B | 8541100080 |
Stock: 10400
Distributors
pcbx
pcbxUnit Price$0.36921
Ext.Price$0.36921
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36921 | $0.36921 |
| 10 | $0.32972 | $3.29720 |
| 25 | $0.30428 | $7.60700 |
| 50 | $0.28081 | $14.04050 |
| 100 | $0.25915 | $25.91500 |
| 300 | $0.24349 | $73.04700 |
| 500 | $0.22878 | $114.39000 |
| 1000 | $0.21711 | $217.11000 |
| 3000 | $0.20682 | $620.46000 |
| 5000 | $0.19702 | $985.10000 |
| 10000 | $0.18768 | $1876.80000 |
