VS-42CTQ030-M3
Manufacturer:
Vishay
Mfr.Part #:
VS-42CTQ030-M3
Datasheet:
Description:

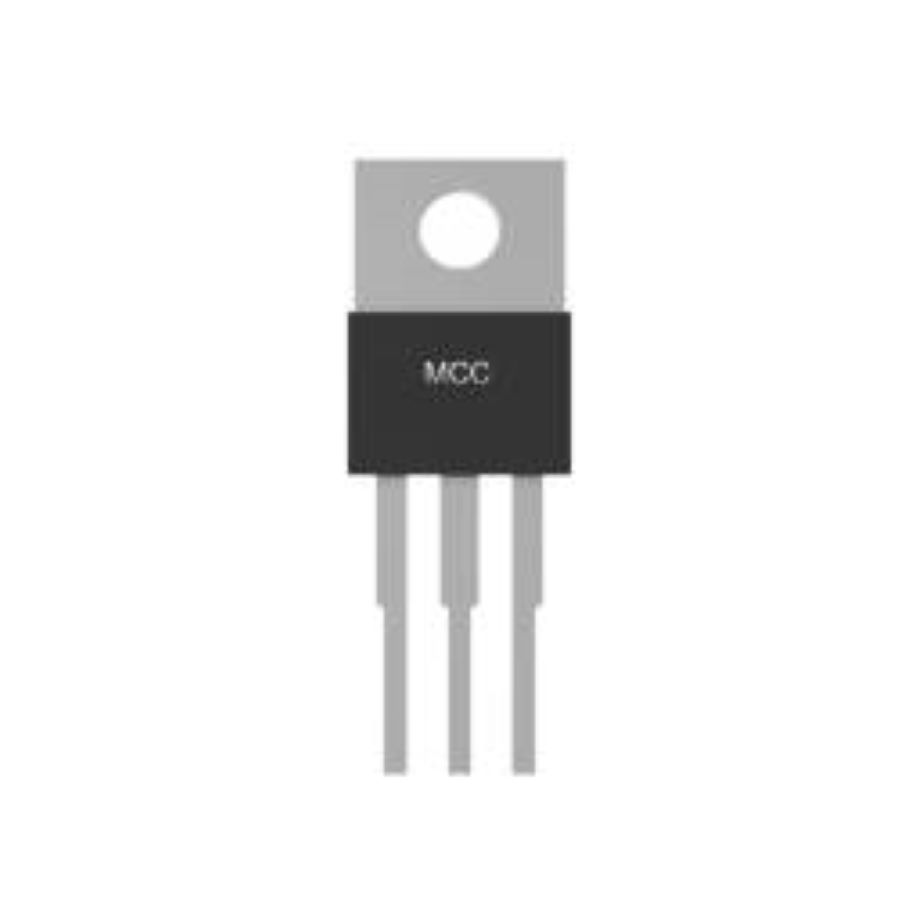

Schottky Diodes TO-220AB Through Hole Dual Common Cathode Forward Current:40 A Forward Voltage:480 mV Max Repetitive Reverse Voltage (Vrrm):30 V Max Forward Surge Current (Ifsm):1.1 kA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| RoHS | Compliant |
| Forward Current | 40 A |
| Forward Voltage | 480 mV |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Dual Common Cathode |
| Forward Surge Current (Ifsm) | 1.1 kA |
| Reverse Current | 3 mA |
Stock: 4164
Distributors
pcbx
pcbxUnit Price$1.38926
Ext.Price$1.38926
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.38926 | $1.38926 |
| 10 | $0.53860 | $5.38600 |
| 25 | $0.53021 | $13.25525 |
| 50 | $0.52195 | $26.09750 |
| 100 | $0.51381 | $51.38100 |
| 300 | $0.50562 | $151.68600 |
| 500 | $0.49757 | $248.78500 |
| 1000 | $0.49728 | $497.28000 |
| 3000 | $0.49699 | $1490.97000 |
| 5000 | $0.49671 | $2483.55000 |
