VS-6CWQ03FN-M3
Manufacturer:
Vishay
Mfr.Part #:
VS-6CWQ03FN-M3
Datasheet:
Description:

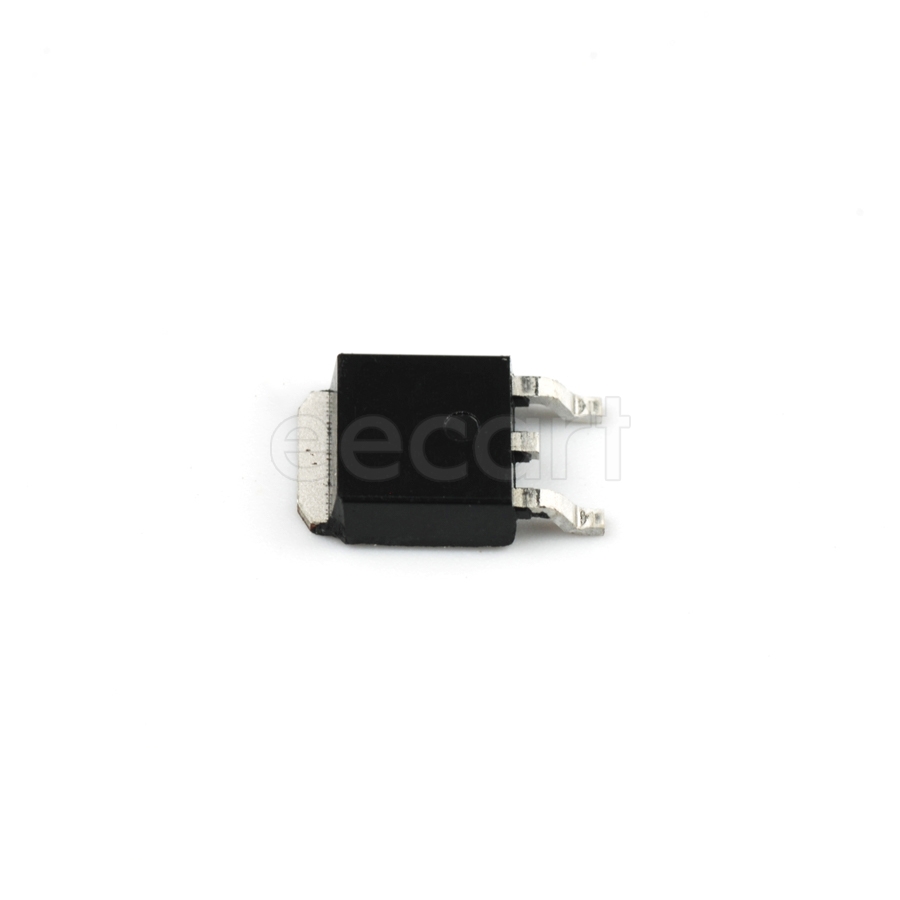

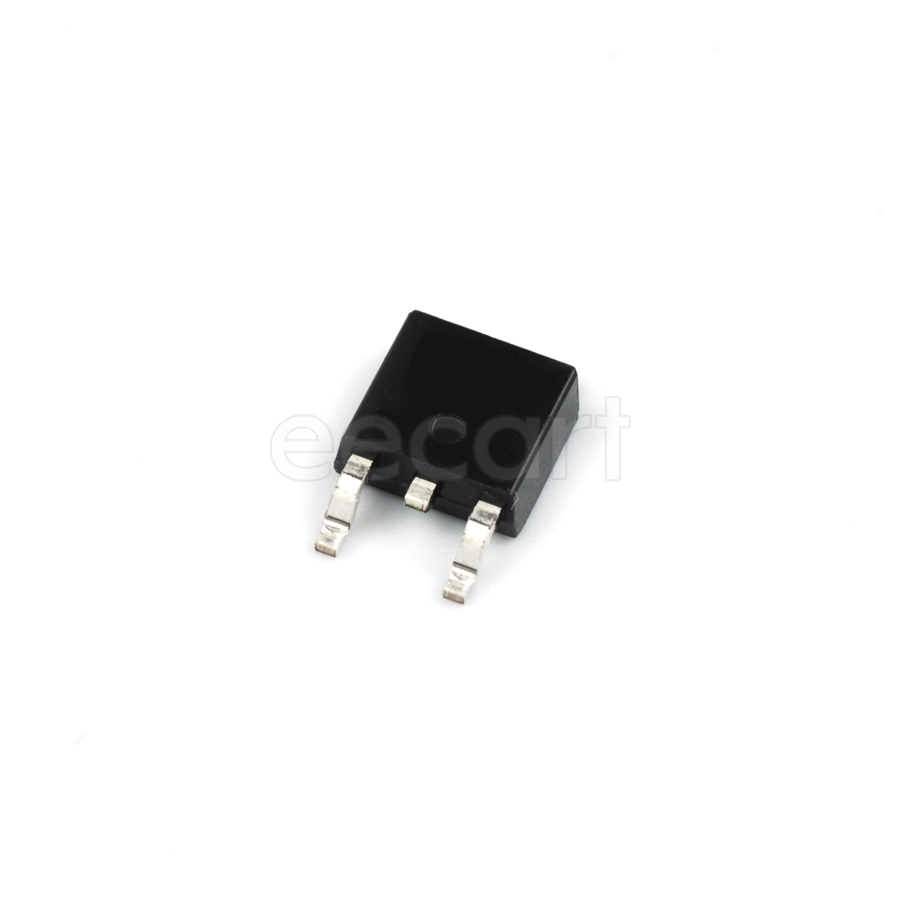

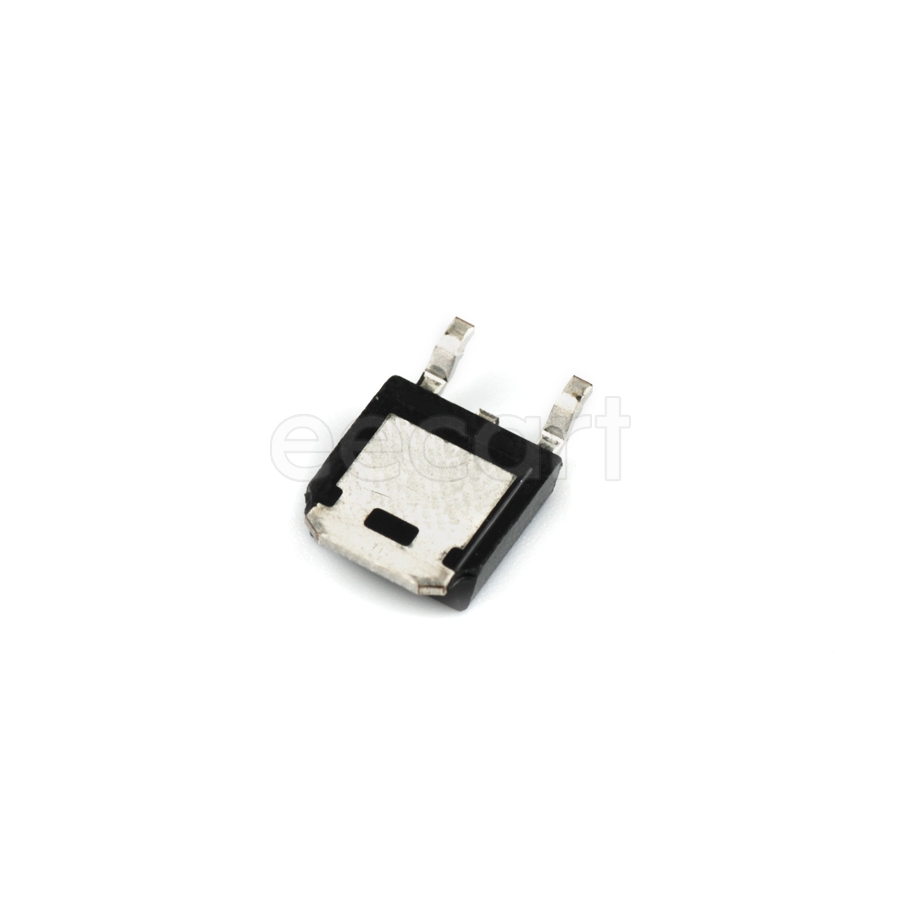

Rectifier Diodes DPAK SMD/SMT Schottky Diodes & Rectifiers Common Cathode Forward Current:7 A Forward Voltage:350 mV Reverse Voltage:30 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| RoHS | Compliant |
| Type | Schottky Diodes & Rectifiers |
| Forward Current | 7 A |
| Forward Voltage | 350 mV |
| Average Rectified Current | 3.5 A |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Common Cathode |
| Reverse Voltage | 30 V |
| Peak Non-Repetitive Surge Current | 535 A |
| Reverse Current | 2 mA |
Stock: 926
Distributors
pcbx
pcbxUnit Price$0.57575
Ext.Price$0.57575
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57575 | $0.57575 |
| 10 | $0.50068 | $5.00680 |
| 25 | $0.43540 | $10.88500 |
| 50 | $0.37863 | $18.93150 |
| 100 | $0.32926 | $32.92600 |
| 300 | $0.28633 | $85.89900 |
| 500 | $0.24900 | $124.50000 |
| 1000 | $0.21653 | $216.53000 |
| 3000 | $0.18830 | $564.90000 |
| 5000 | $0.16375 | $818.75000 |
