VS-KBPC608PBF
Manufacturer:
Vishay
Mfr.Part #:
VS-KBPC608PBF
Datasheet:
Description:

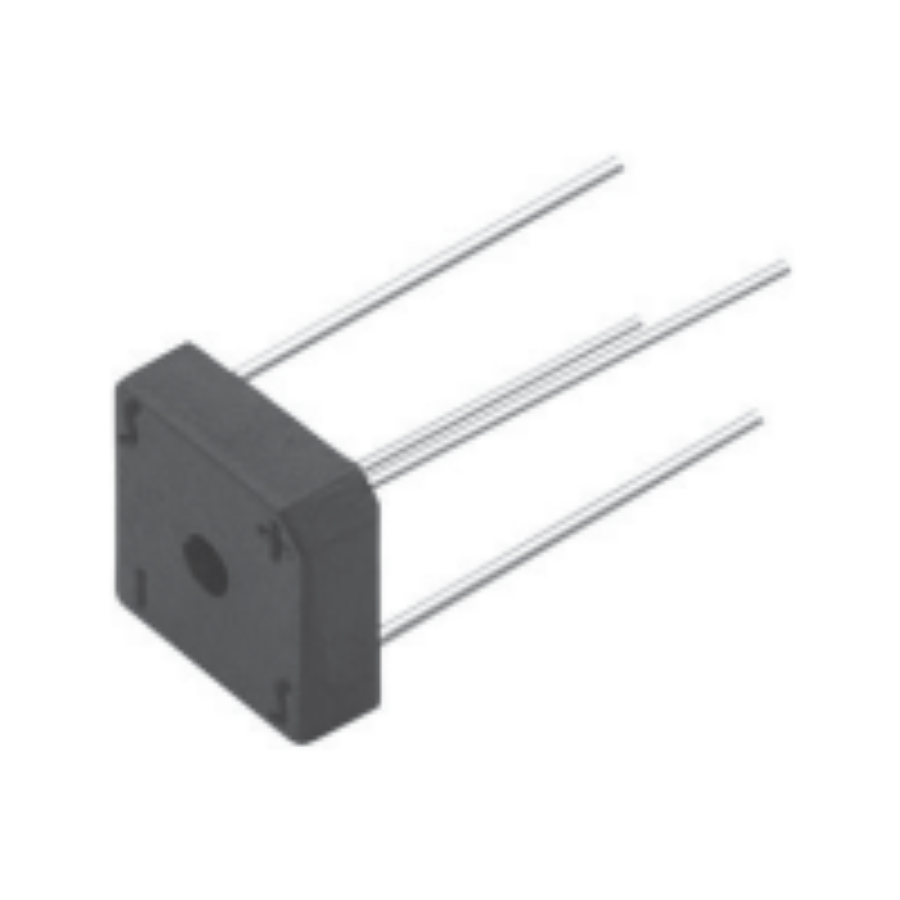

Bridge Rectifiers D-72 Through Hole Single Phase 800 V Forward Current:6 A Forward Voltage:1.2 V
| Parameter | Value |
|---|---|
| Capacitance | |
| Length | 15.75 mm |
| Width | 15.75 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 5.33 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Lead Length | 22 mm |
| Type | Single Phase |
| Number of Elements | 1 |
| Output Current | 6 A |
| Forward Current | 6 A |
| Forward Voltage | 1.2 V |
| Average Rectified Current | 6 A |
| Max Reverse Leakage Current | 10 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 800 V |
| Element Configuration | |
| Max Surge Current | 137 A |
| Forward Surge Current (Ifsm) | |
| Reverse Voltage | 380 V |
| Peak Non-Repetitive Surge Current | 137 A |
| Reverse Current | 10 µA |
| Recovery Time | |
| Schedule B | 8541100080 |
| Peak Reverse Voltage | 800 V |
Stock: 1
Distributors
pcbx
pcbxUnit Price$2.44080
Ext.Price$2.44080
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.44080 | $2.44080 |
| 10 | $2.12851 | $21.28510 |
| 25 | $2.01181 | $50.29525 |
| 50 | $1.90150 | $95.07500 |
| 100 | $1.79722 | $179.72200 |
