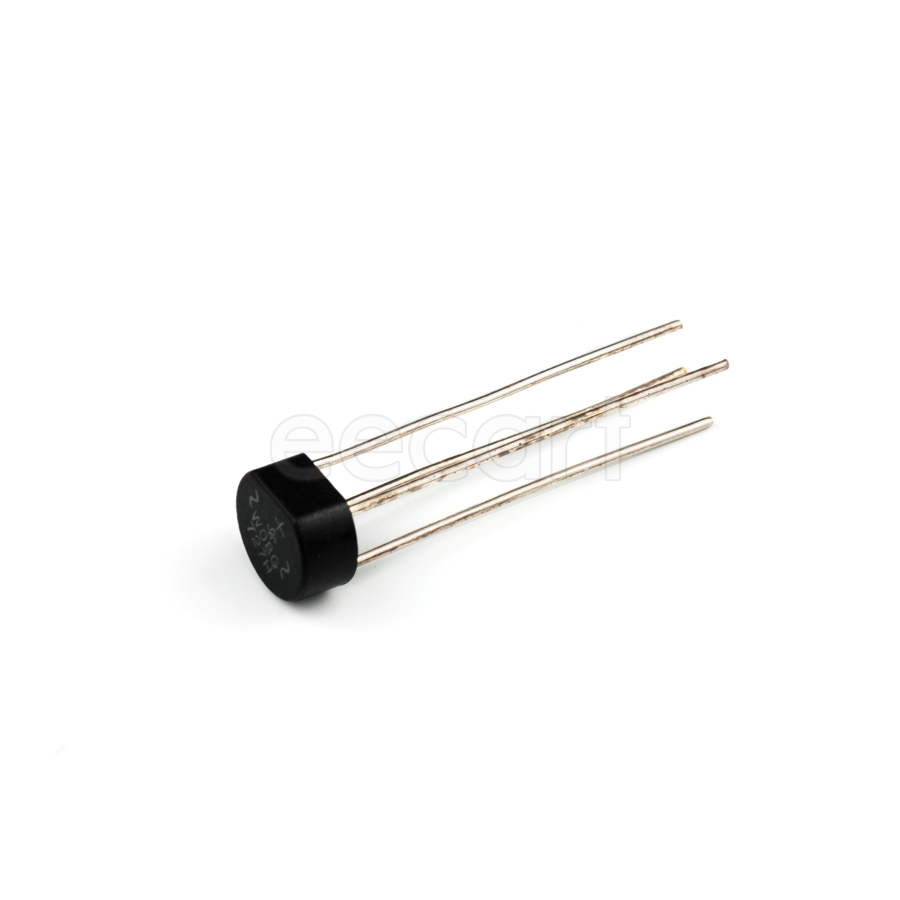

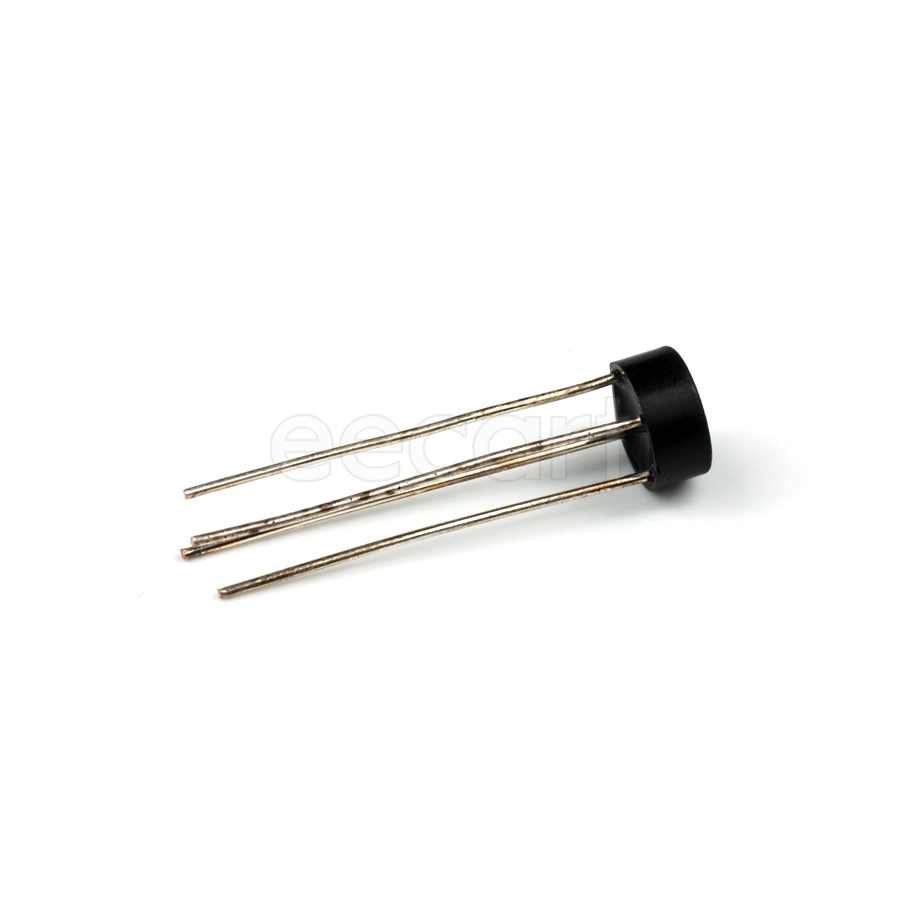

W04G-E4/51
Manufacturer:
Vishay
Mfr.Part #:
W04G-E4/51
Datasheet:
Description:
Bridge Rectifiers WOG Through Hole Single Phase Bridge 400 V Forward Current:1.5 A Forward Voltage:1 V
| Parameter | Value |
|---|---|
| Capacitance | 14 pF |
| Voltage Rating (DC) | 400 V |
| Length | 9.86 mm |
| Width | 8.84 mm |
| Diameter | 9 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 5.6 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Single Phase Bridge |
| Number of Elements | 1 |
| Current Rating | 1.5 A |
| Output Current | 1.5 A |
| Forward Current | 1.5 A |
| Forward Voltage | 1 V |
| Average Rectified Current | 1.5 A |
| Breakdown Voltage | 400 V |
| Max Reverse Leakage Current | 5 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 400 V |
| Element Configuration | Single |
| Max Surge Current | 50 A |
| Forward Surge Current (Ifsm) | 50 A |
| Reverse Voltage | 400 V |
| Max Junction Temperature (Tj) | 150 °C |
| Peak Non-Repetitive Surge Current | 50 A |
| Reverse Current | 5 µA |
| Peak Reverse Voltage | 400 V |
Stock: 42
Distributors
pcbx
pcbxUnit Price$0.60682
Ext.Price$0.60682
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60682 | $0.60682 |
| 10 | $0.49642 | $4.96420 |
| 25 | $0.45685 | $11.42125 |
| 50 | $0.42044 | $21.02200 |
| 100 | $0.38693 | $38.69300 |
| 300 | $0.36972 | $110.91600 |
| 500 | $0.35327 | $176.63500 |
| 1000 | $0.33640 | $336.40000 |
