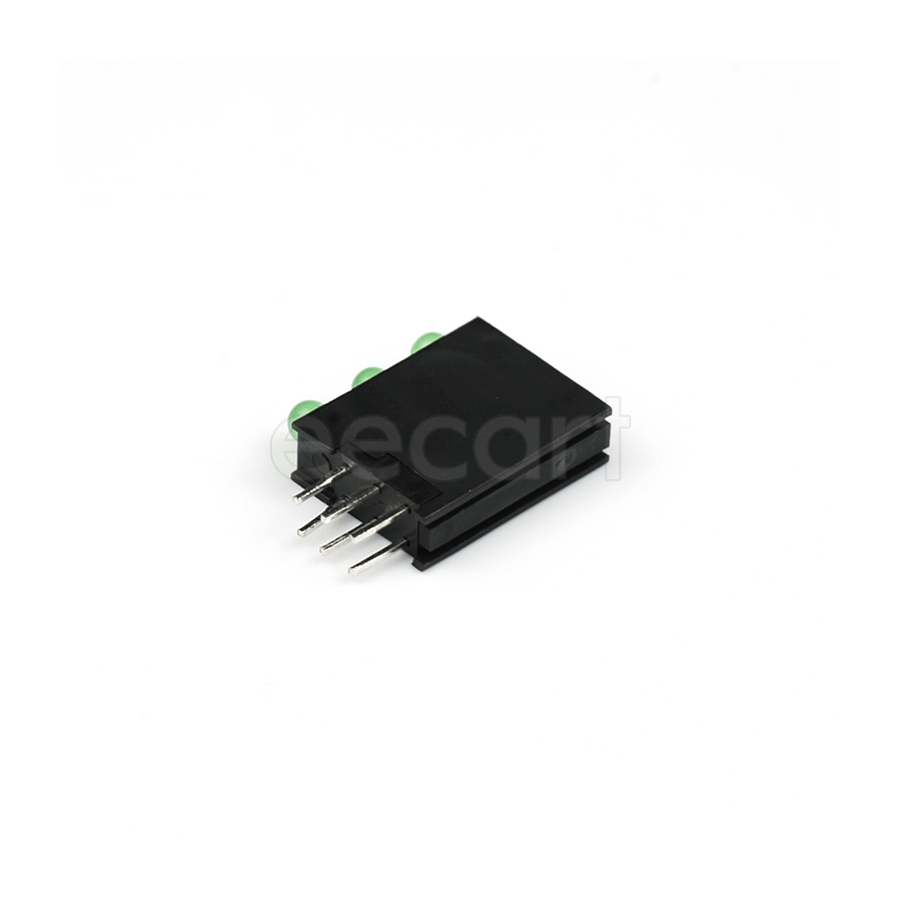

WP934SA/3GD
Manufacturer:
Kingbright
Mfr.Part #:
WP934SA/3GD
Datasheet:
Description:
LEDs 11.43mmL×4.32mmW×15.24mmH Through Hole Green 568 nm 10 mA 2 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 15.49 mm |
| Voltage Rating | 2.2 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Current | 20 mA |
| Forward Current | 10 mA |
| Forward Voltage | 2 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Diffused, Round, Tinted |
| Luminous Intensity | 20 mcd |
| Power Dissipation | 62.5 mW |
| Viewing Angle | 40 ° |
| Wavelength | 568 nm |
| Lens Color | Green |
| Reverse Voltage | 5 V |
| Max Junction Temperature (Tj) | 110 °C |
| Schedule B | 8541402000 |
| Dominant Wavelength/CCT (K) | 568 nm |
| Packaging | Tube |
Stock: 832
Distributors
pcbx
pcbxUnit Price$0.88229
Ext.Price$0.88229
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.88229 | $0.88229 |
| 10 | $0.65060 | $6.50600 |
| 25 | $0.55089 | $13.77225 |
| 50 | $0.46646 | $23.32300 |
| 100 | $0.39497 | $39.49700 |
| 300 | $0.37972 | $113.91600 |
| 500 | $0.36506 | $182.53000 |
| 1000 | $0.35200 | $352.00000 |
| 3000 | $0.33940 | $1018.20000 |
| 5000 | $0.33000 | $1650.00000 |
