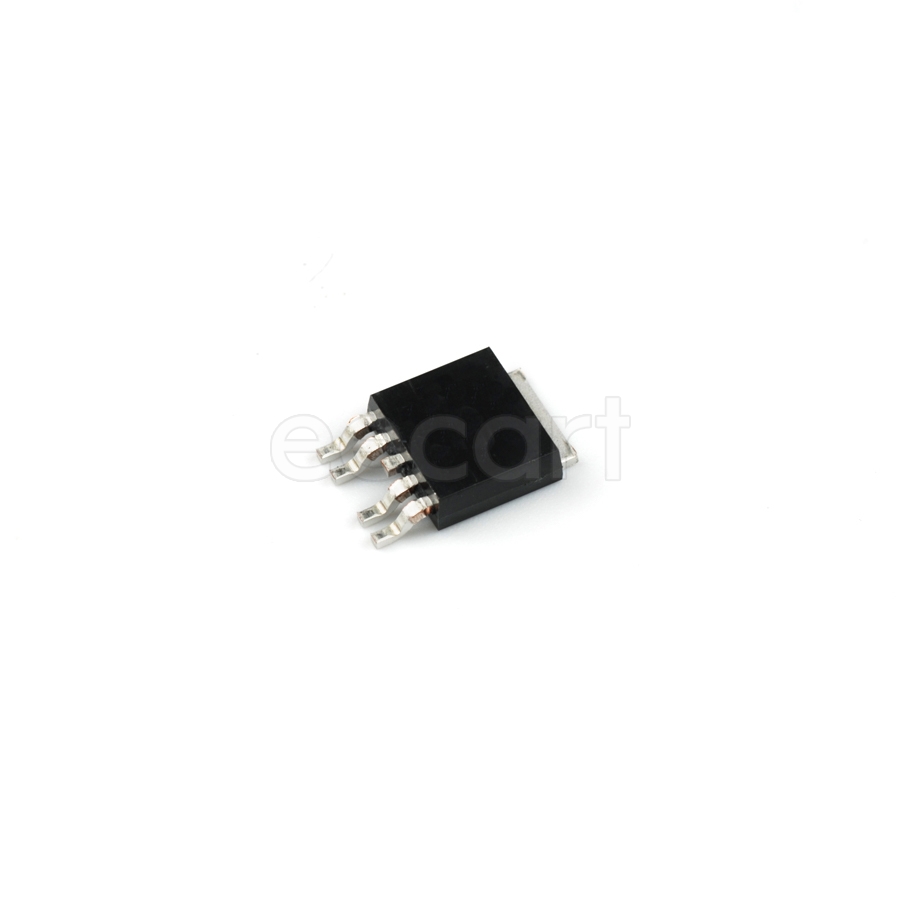

WSF3013
Manufacturer:
Winsok Semicon
Mfr.Part #:
WSF3013
Datasheet:
Description:
MOSFETs TO-252-4L SMD/SMT N-Channel, P-Channel number of channels:2 5.25 W 30 V Continuous Drain Current (ID):12 A, -11.5 A 13 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 5.25 W |
| Number of Channels | 2 |
| Input capacitance | 545 pF |
| Continuous Drain Current (ID) | 12 A, -11.5 A |
| FET Type(Transistor Polarity) | N-Channel, P-Channel |
| Gate Charge | 13 nC |
| Drain to Source Resistance | 17 mΩ, 32 mΩ |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 1.8 V |
Stock: 1449
Distributors
pcbx
pcbxUnit Price$0.19546
Ext.Price$0.19546
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19546 | $0.19546 |
| 10 | $0.18322 | $1.83220 |
| 50 | $0.17174 | $8.58700 |
| 100 | $0.16074 | $16.07400 |
| 500 | $0.15045 | $75.22500 |
| 1000 | $0.14075 | $140.75000 |
| 3000 | $0.13168 | $395.04000 |
| 5000 | $0.12319 | $615.95000 |
