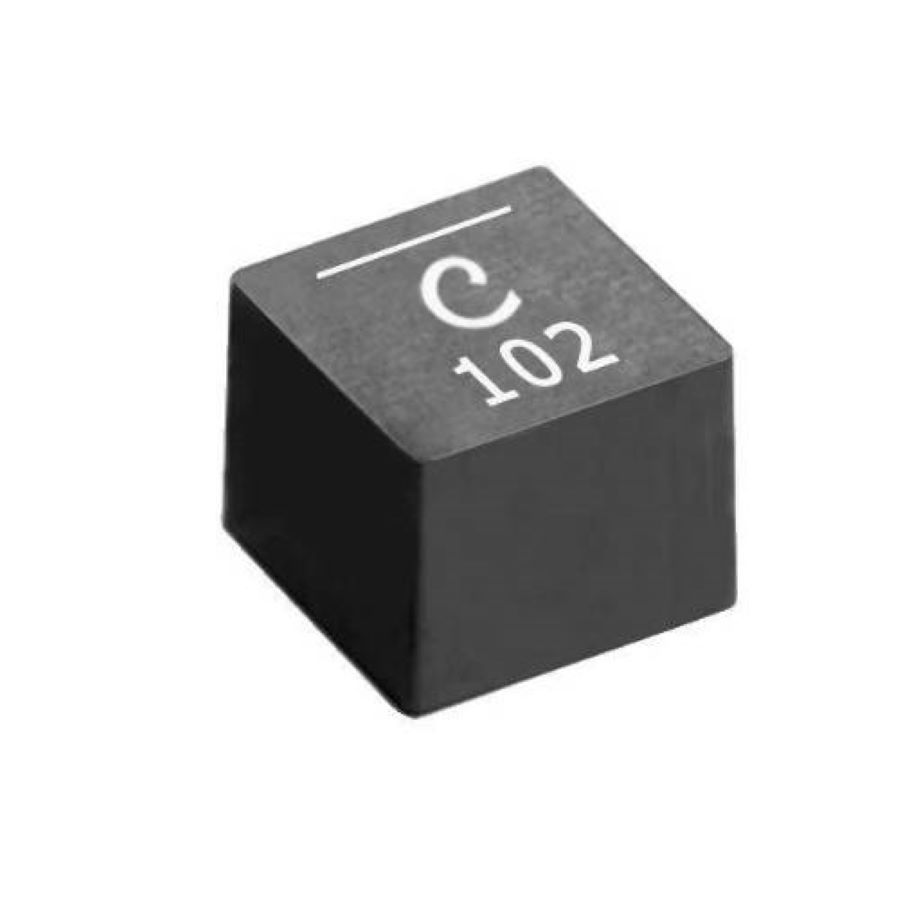

XAL1010-103MED
Manufacturer:
Coilcraft
Mfr.Part #:
XAL1010-103MED
Datasheet:
Description:
Fixed Inductors 10.00mmL×11.30mmW×10.00mmH SMD/SMT 10 µH 20 % 15.5 A 14.75 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 10 mm |
| Length | 11.8 mm |
| Width | 10.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 10 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 11 MHz |
| Type | Molded |
| Current Rating | 15.5 A |
| DC Resistance (DCR) | 14.75 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 12 hours ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Composite |
| RMS Current (Irms) | 15.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 15.5 A |
| Saturation Current | 17.5 A |
