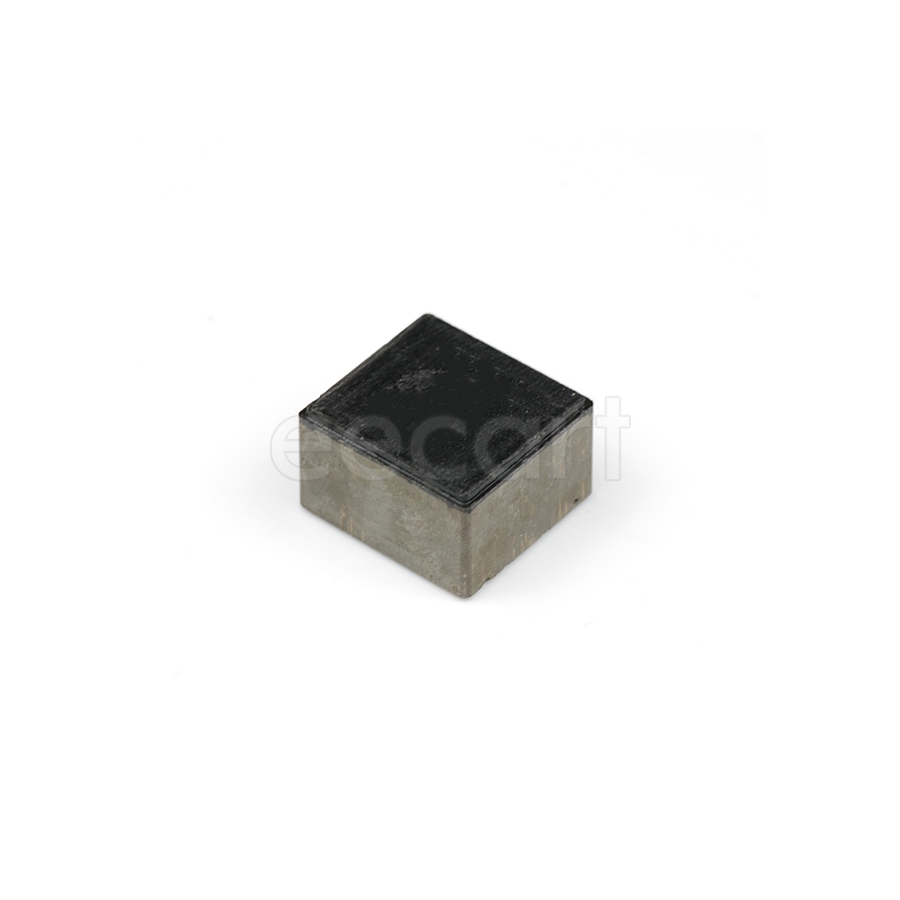

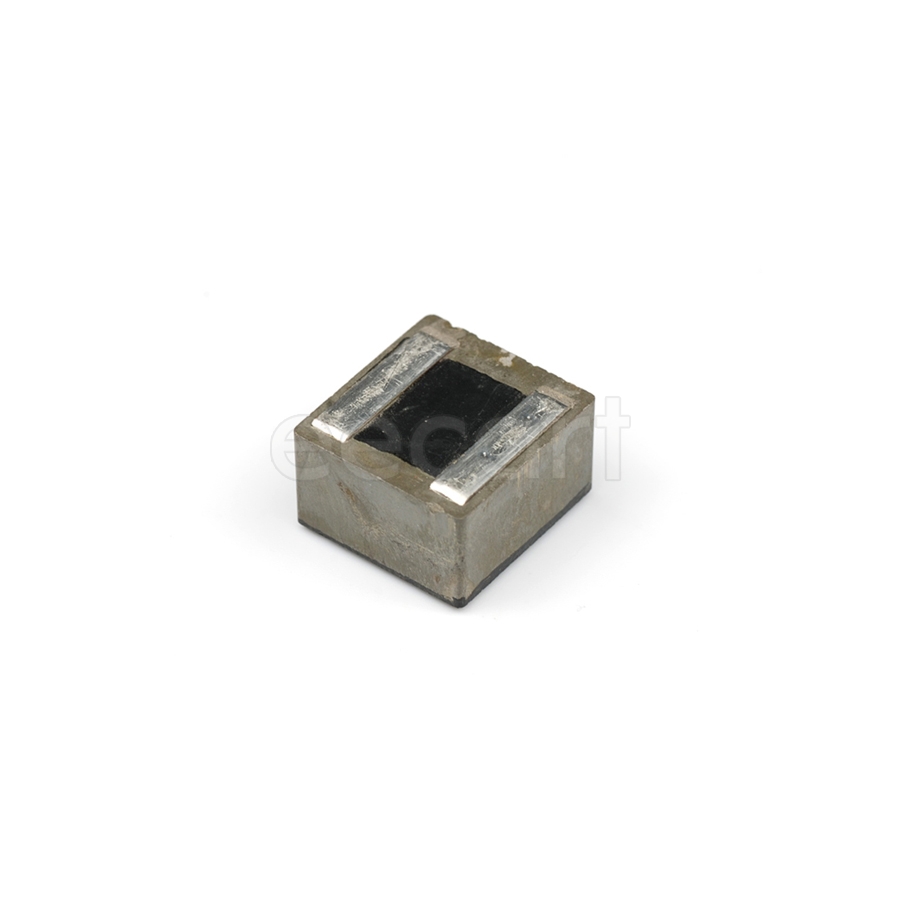

XAL1510-153MED
Manufacturer:
Coilcraft
Mfr.Part #:
XAL1510-153MED
Datasheet:
Description:
Fixed Inductors 16.20mmL×15.20mmW×10.00mmH PCB 15 µH 20 % 18 A 12.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 16.2 mm |
| Width | 15.2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 10 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 8 MHz |
| Type | Molded |
| DC Resistance (DCR) | 12.4 mΩ |
| Test Frequency | 1 MHz |
| Lifecycle Status | Production (Last Updated: 15 hours ago) |
| Shielding | Shielded |
| Inductance | 15 µH |
| Core Material | Composite |
| Saturation Current | 23 A |
| Current Rating | 18 A |
Stock: 64
Distributors
pcbx
pcbxUnit Price$6.37152
Ext.Price$6.37152
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.37152 | $6.37152 |
| 10 | $5.46922 | $54.69220 |
| 25 | $5.12637 | $128.15925 |
| 50 | $4.80501 | $240.25050 |
| 100 | $4.50381 | $450.38100 |
