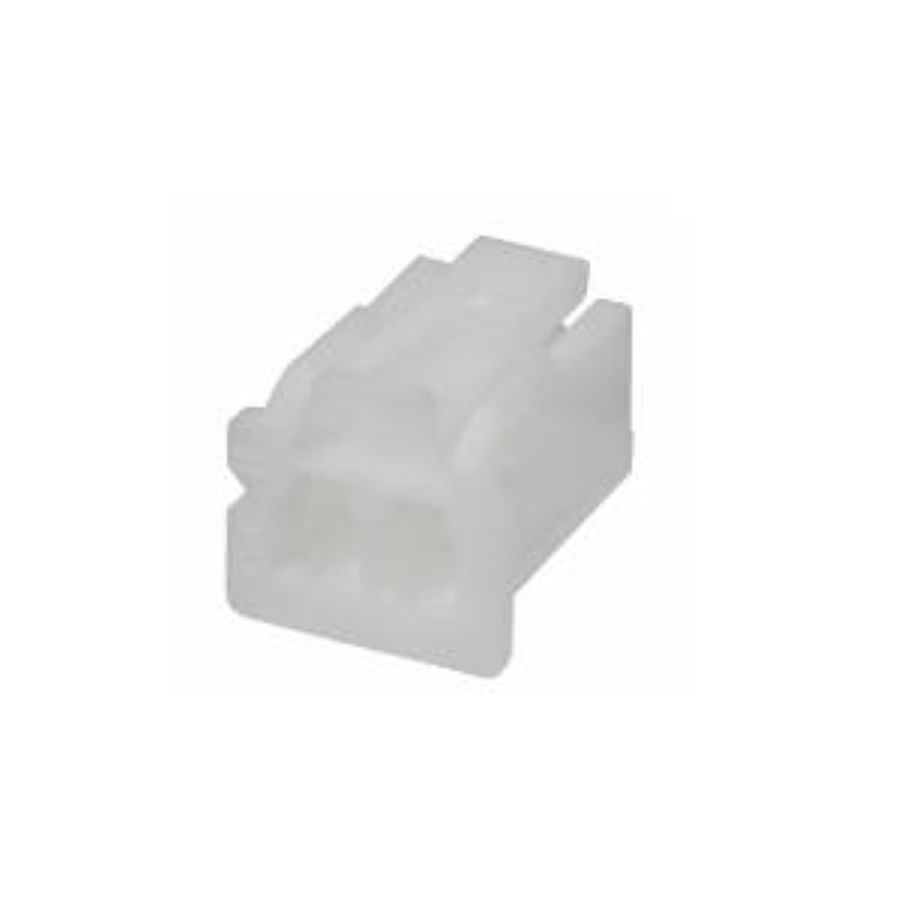

XAP-02V-1
Manufacturer:
JST
Mfr.Part #:
XAP-02V-1
Datasheet:
Description:
Headers and Wire Housings Free Hanging, Panel Receptacle, Socket Number of Positions:2 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 7.3 mm |
| Width | 6.9 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 9.5 mm |
| Packaging | Bulk |
| Depth | 9.5 mm |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | White |
| Gender | Female |
| Number of Contacts | 2 |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 20 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | White |
Stock: 14127
Distributors
pcbx
pcbxUnit Price$0.06086
Ext.Price$0.06086
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06086 | $0.06086 |
| 10 | $0.03043 | $0.30430 |
| 50 | $0.02752 | $1.37600 |
| 100 | $0.02489 | $2.48900 |
| 500 | $0.02251 | $11.25500 |
| 1000 | $0.02037 | $20.37000 |
| 3000 | $0.01905 | $57.15000 |
| 5000 | $0.01782 | $89.10000 |
| 10000 | $0.01666 | $166.60000 |
