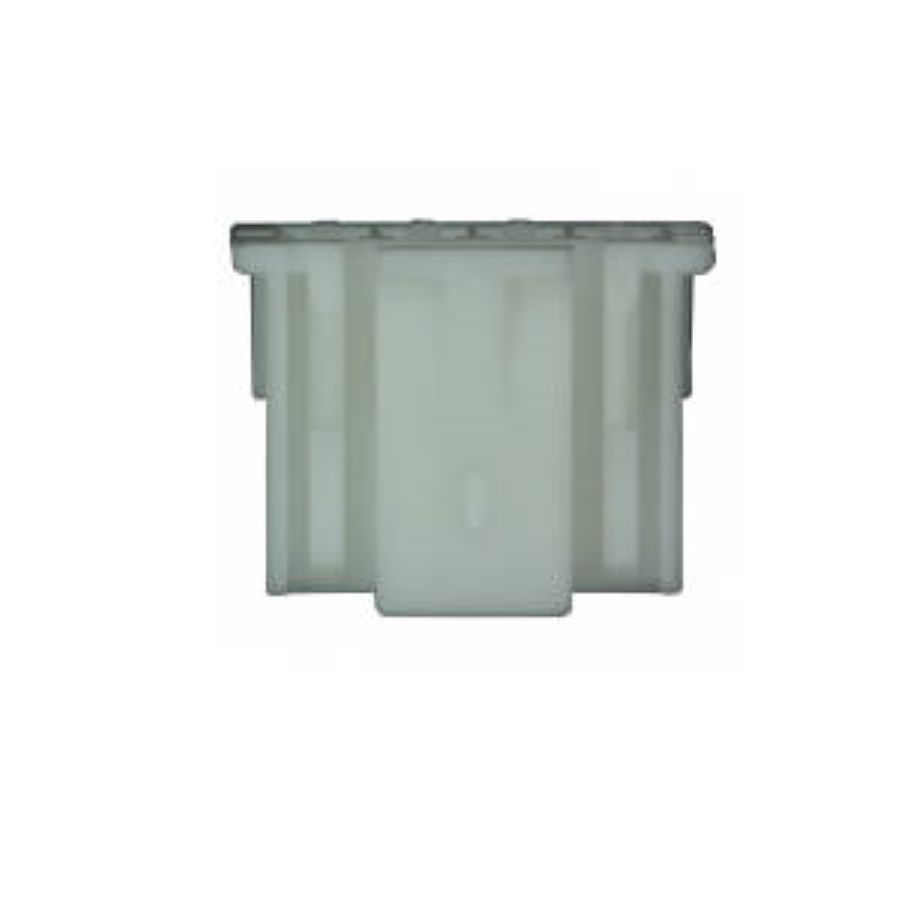

XAP-04V-1
Manufacturer:
JST
Mfr.Part #:
XAP-04V-1
Datasheet:
Description:
Headers and Wire Housings Free Hanging, Panel Receptacle, Socket Number of Positions:4 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12.3 mm |
| Width | 6.9 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 9.5 mm |
| Packaging | Bulk |
| Depth | 9.5 mm |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Natural, White |
| Gender | Female |
| Number of Contacts | 4 |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 20 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | White |
Stock: 20814
Distributors
pcbx
pcbxUnit Price$0.10598
Ext.Price$0.10598
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10598 | $0.10598 |
| 10 | $0.05299 | $0.52990 |
| 50 | $0.04815 | $2.40750 |
| 100 | $0.04375 | $4.37500 |
| 500 | $0.03748 | $18.74000 |
| 1000 | $0.03211 | $32.11000 |
| 3000 | $0.03078 | $92.34000 |
| 5000 | $0.02950 | $147.50000 |
| 10000 | $0.02803 | $280.30000 |
