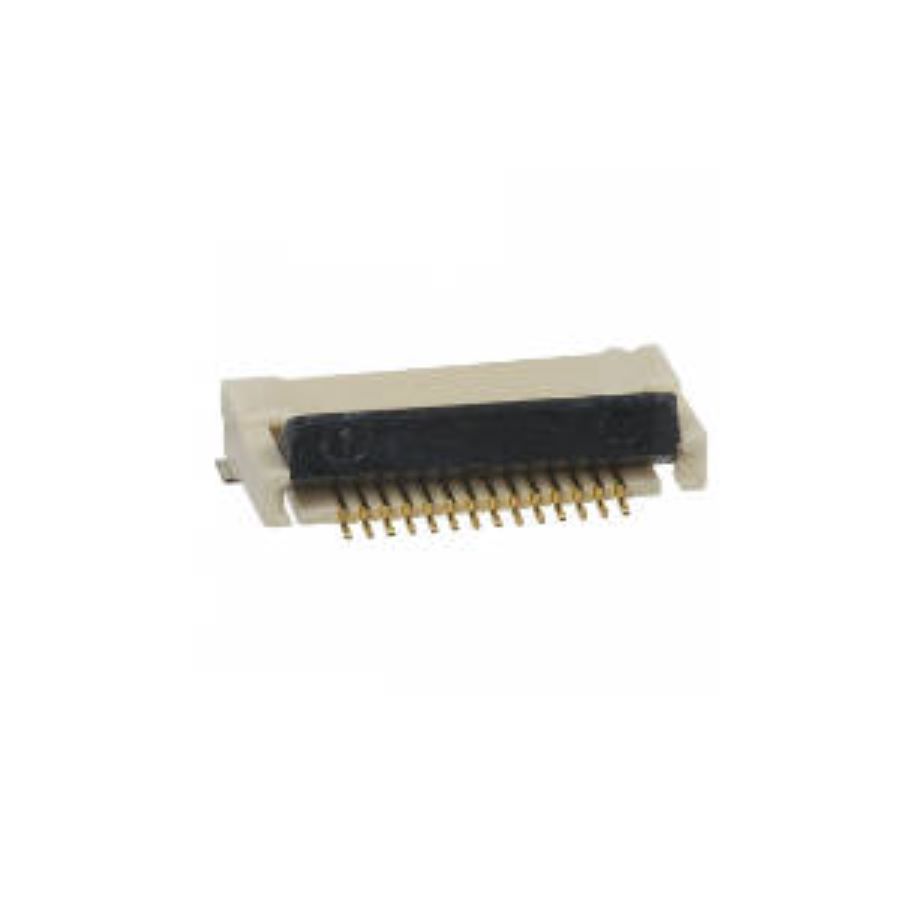

XF2M-1415-1A
Manufacturer:
Omron
Mfr.Part #:
XF2M-1415-1A
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:14 500 mA 50 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 11.1 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 6.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper, Nickel |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Max Voltage Rating (DC) | 5.05 kV |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Housing Color | Natural |
| Schedule B | 8536694040 |
Stock: 664
Distributors
pcbx
pcbxUnit Price$0.44006
Ext.Price$0.44006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44006 | $0.44006 |
| 10 | $0.41364 | $4.13640 |
| 25 | $0.38881 | $9.72025 |
| 50 | $0.36547 | $18.27350 |
| 100 | $0.34462 | $34.46200 |
| 300 | $0.32496 | $97.48800 |
| 500 | $0.30642 | $153.21000 |
| 1000 | $0.28894 | $288.94000 |
| 3000 | $0.27244 | $817.32000 |
