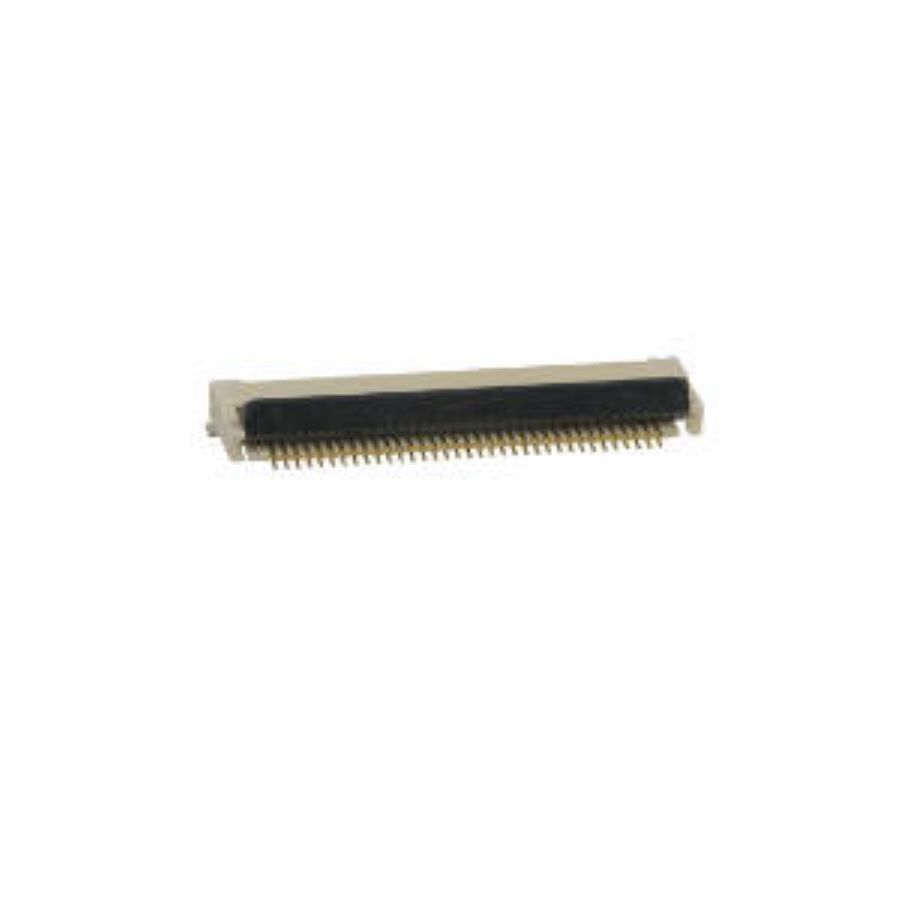

XF2M-3515-1A
Manufacturer:
Omron
Mfr.Part #:
XF2M-3515-1A
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:35 500 mA 50 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 21.6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 6.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Number of Contacts | 35 |
| Number of Poles | 35 |
| Number of Positions | 35 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Housing Color | Natural |
