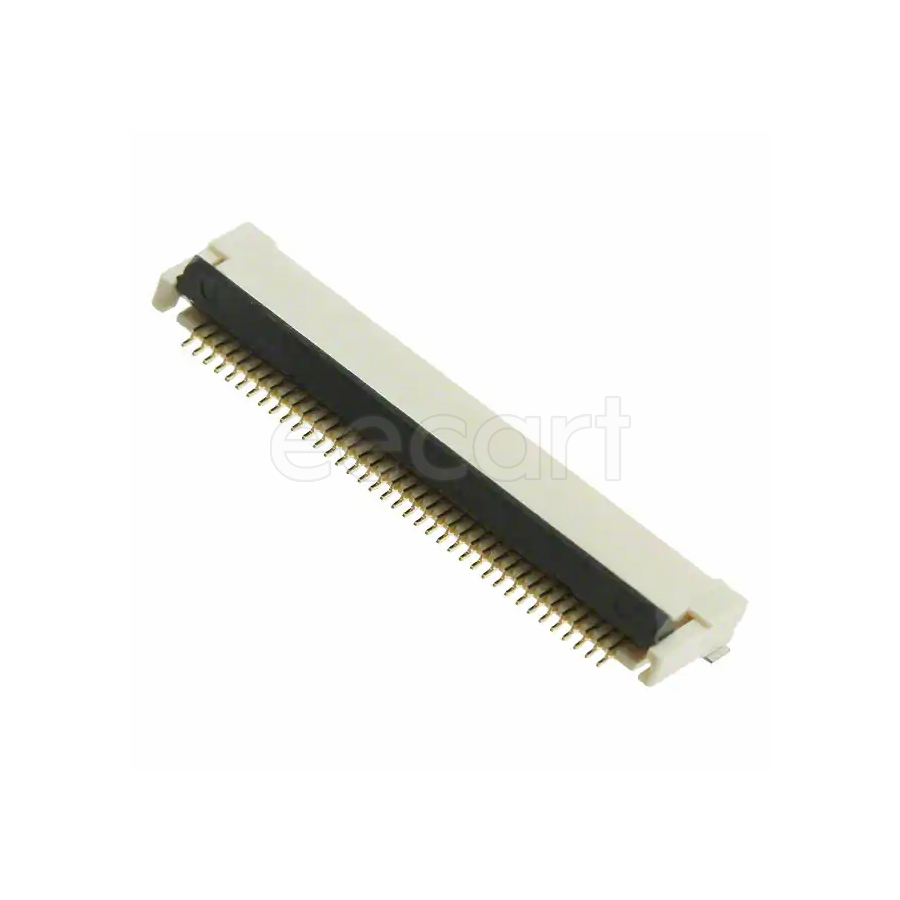

XF2M-4015-1A
Manufacturer:
Omron
Mfr.Part #:
XF2M-4015-1A
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:40 500 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Gender | Male |
| Number of Contacts | 40 |
| Mounting Style | Surface Mount, Vertical |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Number of Positions | 40 |
| Housing Material | Plastic |
| voltage rating dc | 50 V |
| voltage rating ac | 50 V |
| Housing Color | Natural |
| pin pitch | 500 µm |
| Mounting Angle | Right Angle |
Stock: 4777
Distributors
pcbx
pcbxUnit Price$0.49392
Ext.Price$0.49392
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49392 | $0.49392 |
| 10 | $0.39091 | $3.90910 |
| 25 | $0.35608 | $8.90200 |
| 50 | $0.32435 | $16.21750 |
| 100 | $0.29546 | $29.54600 |
| 300 | $0.27895 | $83.68500 |
| 500 | $0.26336 | $131.68000 |
| 1000 | $0.24803 | $248.03000 |
