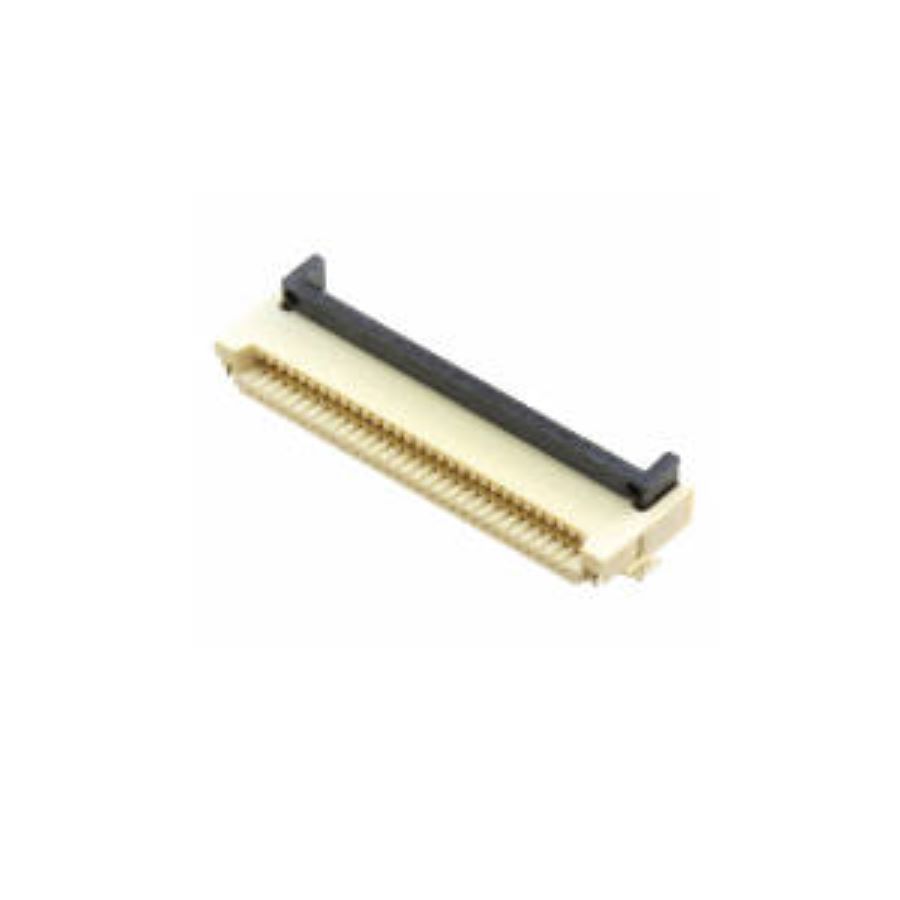

XF3M-3015-1B
Manufacturer:
Omron
Mfr.Part #:
XF3M-3015-1B
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:30 500 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Gold |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Max Voltage Rating (DC) | 5.05 kV |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Dual |
| Contact Resistance | 50 mΩ |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Schedule B | 8536694040 |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.37680
Ext.Price$0.37680
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37680 | $0.37680 |
| 10 | $0.36778 | $3.67780 |
| 25 | $0.36496 | $9.12400 |
| 50 | $0.36216 | $18.10800 |
| 100 | $0.35939 | $35.93900 |
