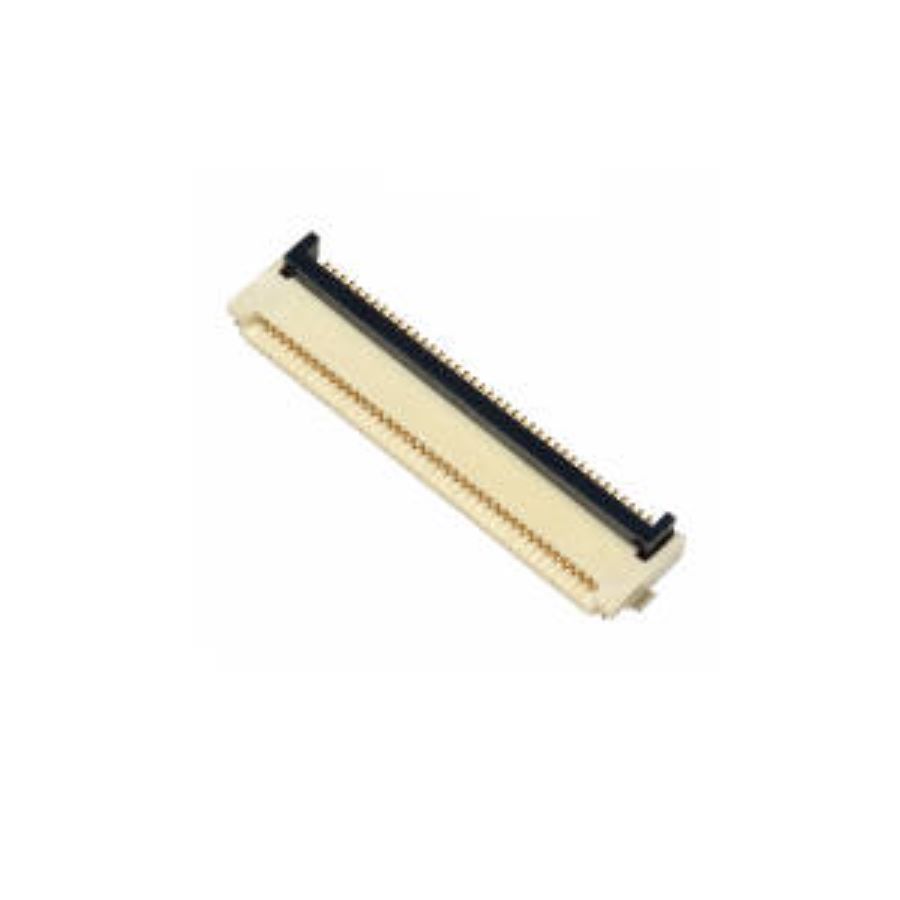

XF3M-4015-1B
Manufacturer:
Omron
Mfr.Part #:
XF3M-4015-1B
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:40 500 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Gold |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Dual |
| Contact Resistance | 50 mΩ |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Mounting Angle | Right Angle |
Stock: 563
Distributors
pcbx
pcbxUnit Price$0.65213
Ext.Price$0.65213
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.65213 | $0.65213 |
| 10 | $0.52886 | $5.28860 |
| 25 | $0.48580 | $12.14500 |
| 50 | $0.44625 | $22.31250 |
| 100 | $0.40992 | $40.99200 |
| 300 | $0.36497 | $109.49100 |
| 500 | $0.32495 | $162.47500 |
| 1000 | $0.30671 | $306.71000 |
