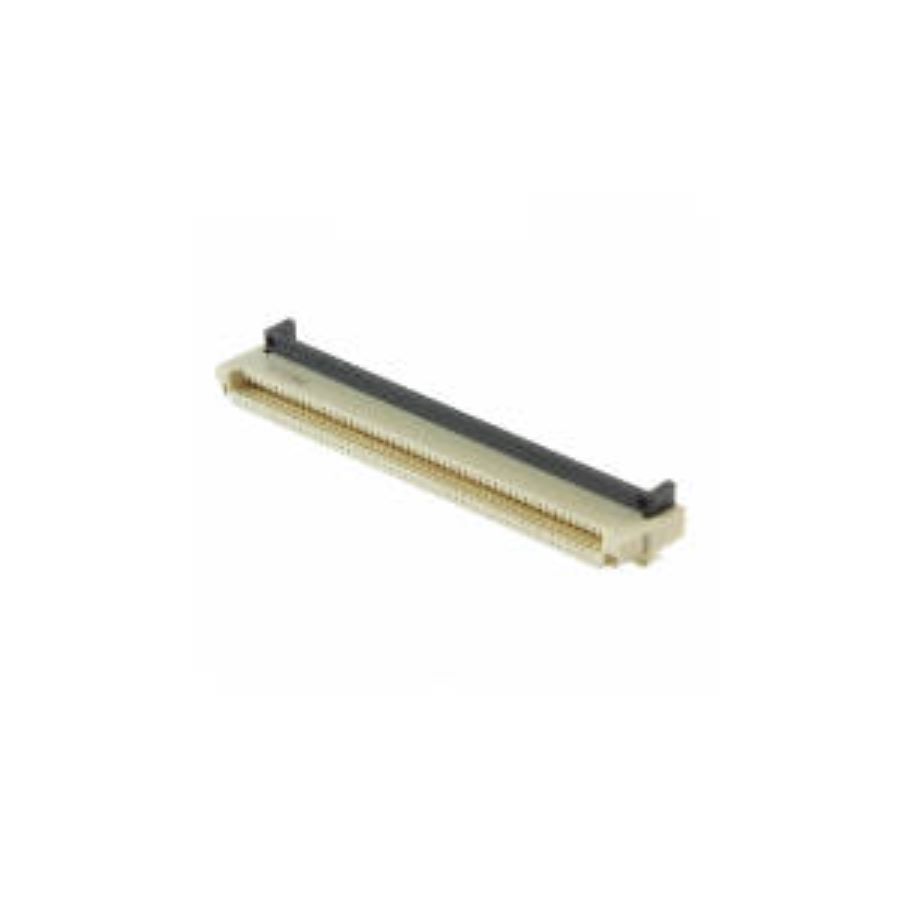

XF3M-5015-1B
Manufacturer:
Omron
Mfr.Part #:
XF3M-5015-1B
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:50 500 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Gold |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Receptacle |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Dual |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Schedule B | 8536694040 |
| Mounting Angle | Right Angle |
Stock: 2787
Distributors
pcbx
pcbxUnit Price$1.28920
Ext.Price$1.28920
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.28920 | $1.28920 |
| 10 | $1.27354 | $12.73540 |
| 25 | $1.25807 | $31.45175 |
| 50 | $1.24278 | $62.13900 |
| 100 | $1.22768 | $122.76800 |
| 300 | $1.21276 | $363.82800 |
| 500 | $1.19802 | $599.01000 |
| 1000 | $1.18344 | $1183.44000 |
