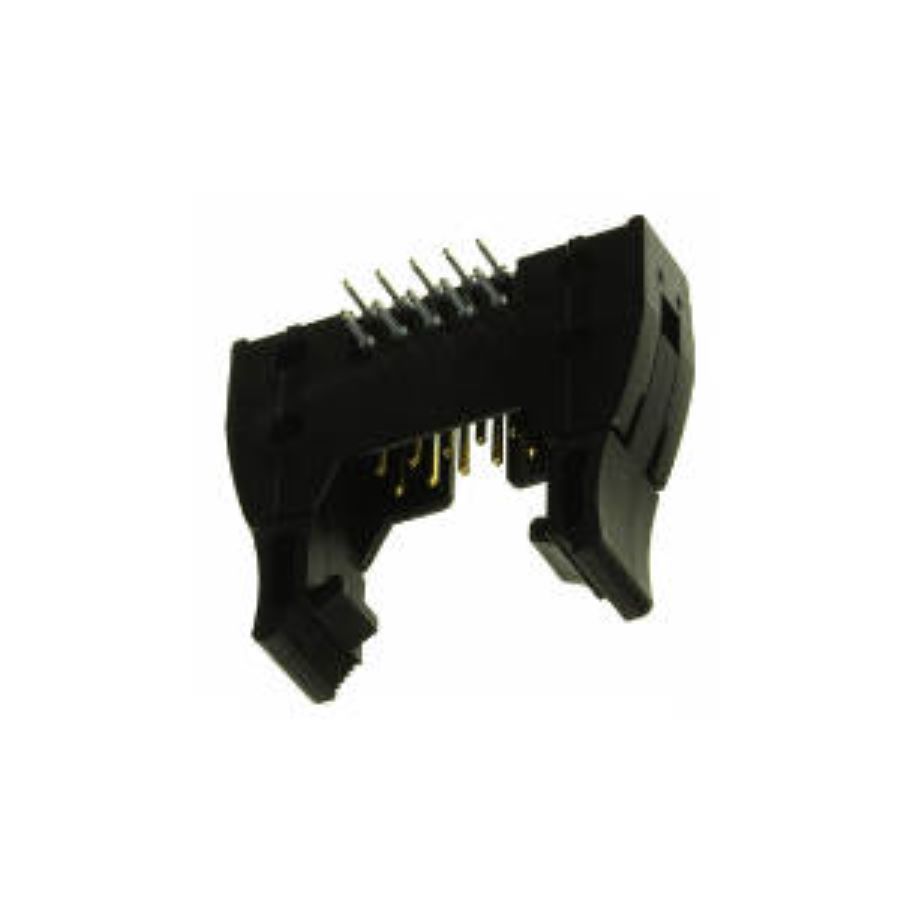

XG4A-1034
Manufacturer:
Omron
Mfr.Part #:
XG4A-1034
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 27 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polybutylene |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Black |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Termination Post Length | 3.2 mm |
Stock: 33
Distributors
pcbx
pcbxUnit Price$0.55459
Ext.Price$0.55459
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55459 | $0.55459 |
| 10 | $0.54278 | $5.42780 |
| 25 | $0.53052 | $13.26300 |
| 50 | $0.51854 | $25.92700 |
| 100 | $0.50683 | $50.68300 |
