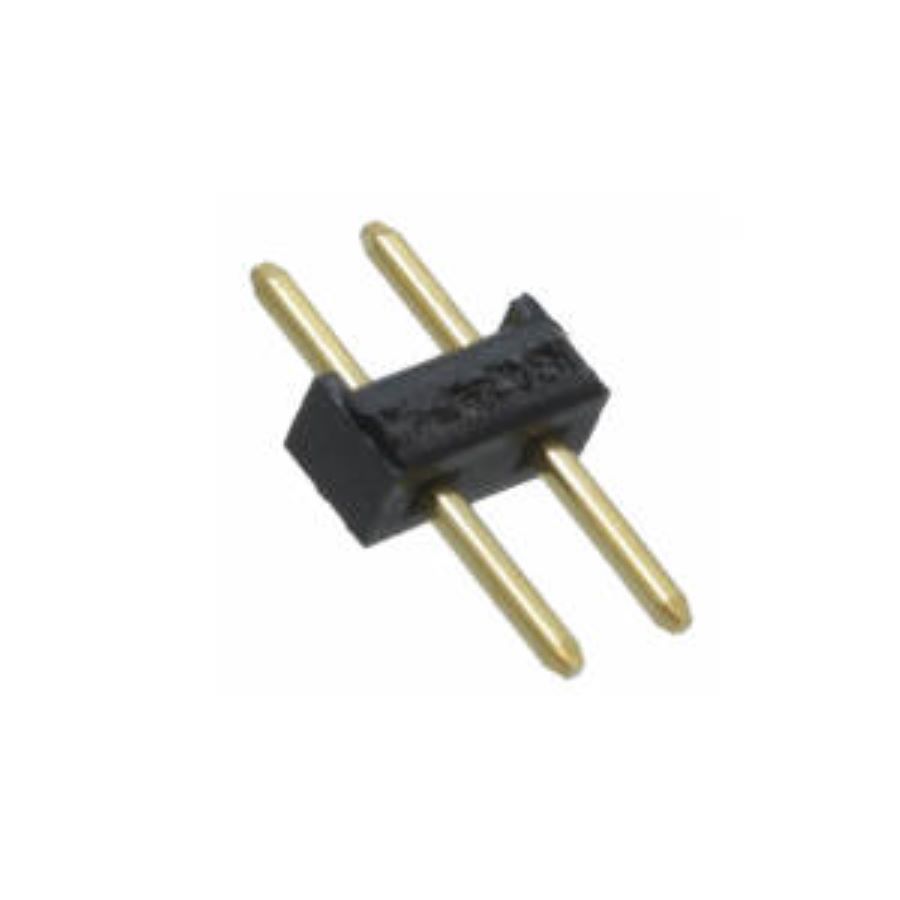

XG8T-0231
Manufacturer:
Omron
Mfr.Part #:
XG8T-0231
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 2.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 2.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polybutylene |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Black |
| Contact Mating Length | 4.2926 mm |
| Mating Post Length | 4.3 mm |
| Termination Post Length | 3 mm |
Stock: 2825
Distributors
pcbx
pcbxUnit Price$0.12482
Ext.Price$0.12482
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12482 | $0.12482 |
| 10 | $0.07198 | $0.71980 |
| 50 | $0.06780 | $3.39000 |
| 100 | $0.06386 | $6.38600 |
