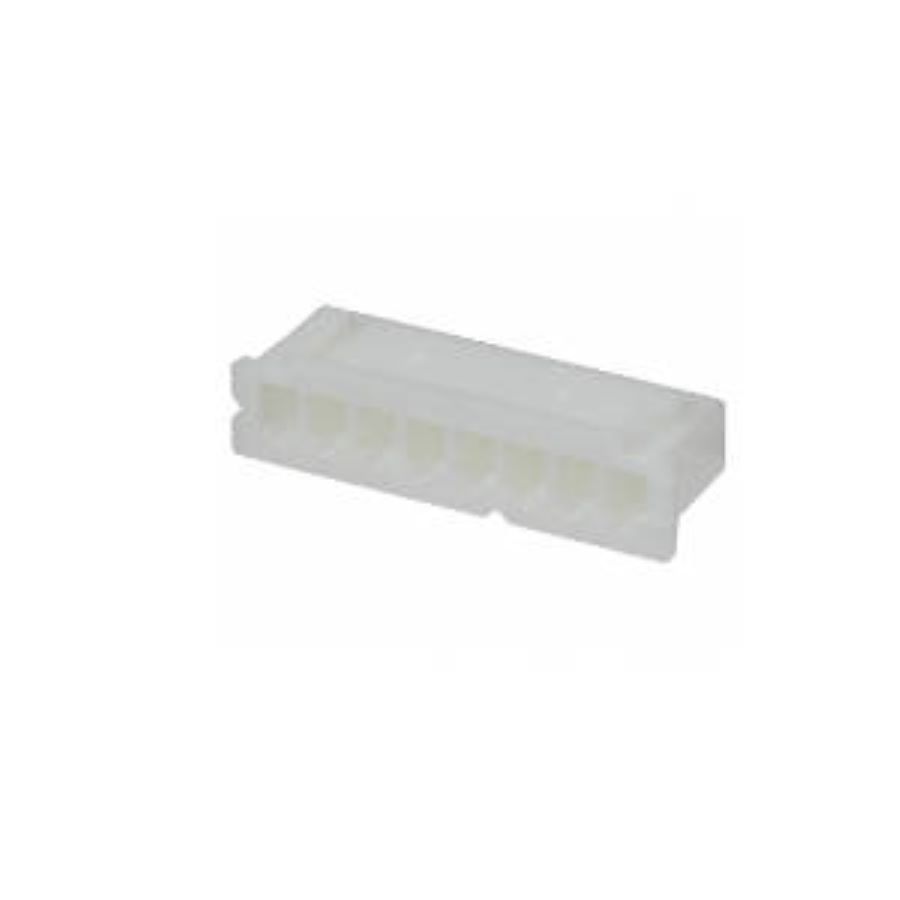

XHP-8
Manufacturer:
JST
Mfr.Part #:
XHP-8
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:8 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 22.3 mm |
| Width | 5.7 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 8 |
| Height | 6.35 mm |
| Packaging | Bulk |
| Depth | 7.75 mm |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 250 V |
| Orientation | Straight |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 8 |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 22 AWG |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | White |
| Schedule B | 8536695050 |
Stock: 1335
Distributors
pcbx
pcbxUnit Price$0.05990
Ext.Price$0.05990
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05990 | $0.05990 |
| 10 | $0.02995 | $0.29950 |
| 50 | $0.02720 | $1.36000 |
| 100 | $0.02470 | $2.47000 |
| 500 | $0.02243 | $11.21500 |
| 1000 | $0.02037 | $20.37000 |
| 3000 | $0.01901 | $57.03000 |
| 5000 | $0.01774 | $88.70000 |
| 10000 | $0.01656 | $165.60000 |
