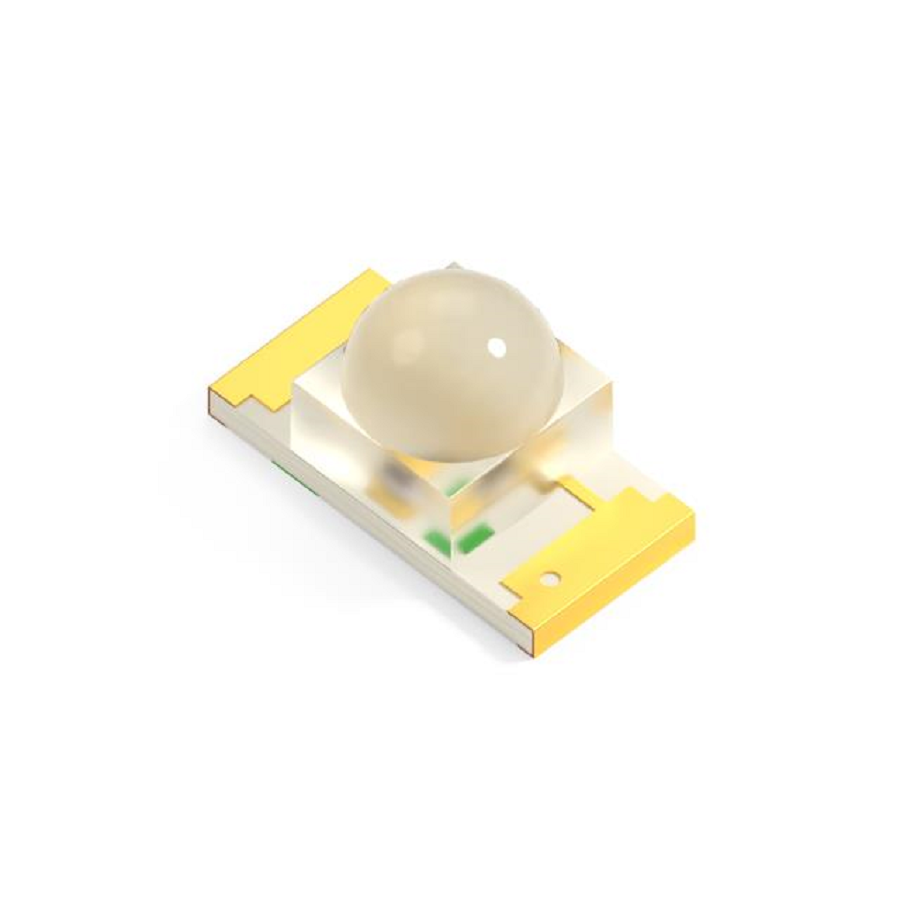

XZVG55W-3
Manufacturer:
SunLED
Mfr.Part #:
XZVG55W-3
Datasheet:
Description:
LEDs 1206(3216 Metric) SMD/SMT Green 570 nm 30 mA 2.1 V
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Height | 1.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Current | 30 mA |
| Forward Voltage | 2.1 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Green |
| Illumination Color | Green |
| Luminous Intensity | 297 mcd |
| Viewing Angle | 35 ° |
| Wavelength | 574 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 570 nm |
| Test Current | 20 mA |
Stock: 13676
Distributors
pcbx
pcbxUnit Price$0.21260
Ext.Price$0.21260
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21260 | $0.21260 |
| 10 | $0.14519 | $1.45190 |
| 50 | $0.12221 | $6.11050 |
| 100 | $0.10286 | $10.28600 |
| 500 | $0.08357 | $41.78500 |
| 1000 | $0.07719 | $77.19000 |
