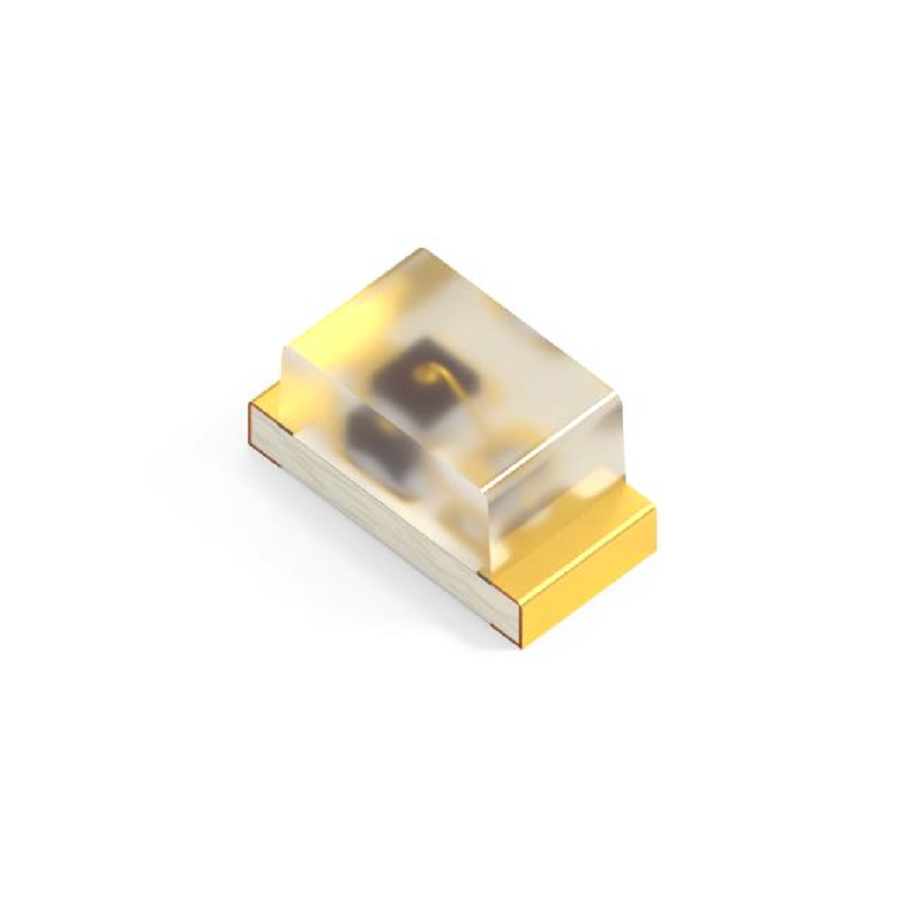

XZVG68W-2
Manufacturer:
SunLED
Mfr.Part #:
XZVG68W-2
Datasheet:
Description:
LEDs 0402(1005 Metric) SMD/SMT Green 570 nm 30 mA 2.1 V
| Parameter | Value |
|---|---|
| Length | 1 mm |
| Width | 500 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Height | 600 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Current | 30 mA |
| Forward Voltage | 2.1 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Green |
| Illumination Color | Green |
| Luminous Intensity | 49 mcd |
| Viewing Angle | 120 ° |
| Wavelength | 574 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 570 nm |
| Test Current | 20 mA |
Stock: 95143
Distributors
pcbx
pcbxUnit Price$0.15661
Ext.Price$0.15661
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15661 | $0.15661 |
| 10 | $0.10698 | $1.06980 |
| 50 | $0.08947 | $4.47350 |
| 100 | $0.07483 | $7.48300 |
| 500 | $0.06020 | $30.10000 |
| 1000 | $0.05536 | $55.36000 |
