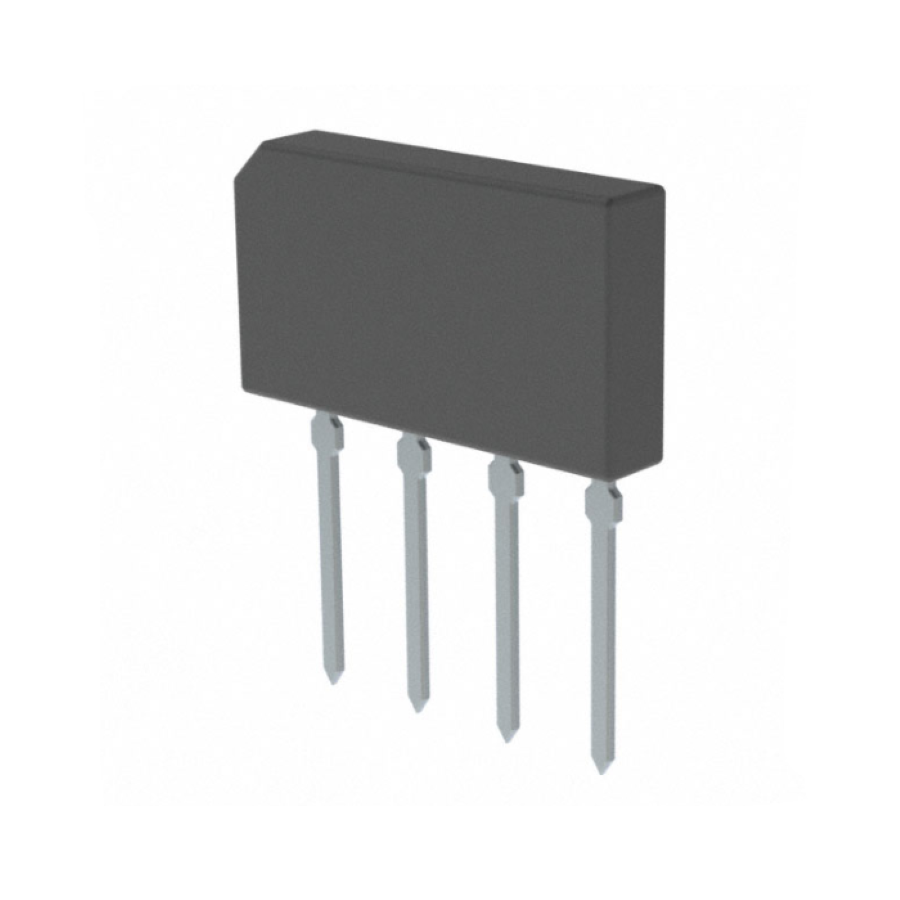

GBL610
Manufacturer:
YFW
Mfr.Part #:
GBL610
Datasheet:
Description:
Bridge Rectifiers GBL-4 Through Hole Passivated Bridge 1 kV Max Reverse Leakage Current:500 µA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Box |
| RoHS | Compliant |
| Type | Passivated Bridge |
| Forward Current | 6 A |
| Forward Voltage | 1.1 V |
| Average Rectified Current | 6 A |
| Max Reverse Leakage Current | 500 µA |
| Peak Reverse Voltage | 1 kV |
Stock: 294
Distributors
pcbx
pcbxUnit Price$0.18240
Ext.Price$0.18240
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18240 | $0.18240 |
| 10 | $0.16207 | $1.62070 |
| 50 | $0.14400 | $7.20000 |
| 100 | $0.12202 | $12.20200 |
| 500 | $0.10340 | $51.70000 |
| 1000 | $0.09857 | $98.57000 |
| 3000 | $0.09396 | $281.88000 |
| 5000 | $0.08957 | $447.85000 |
