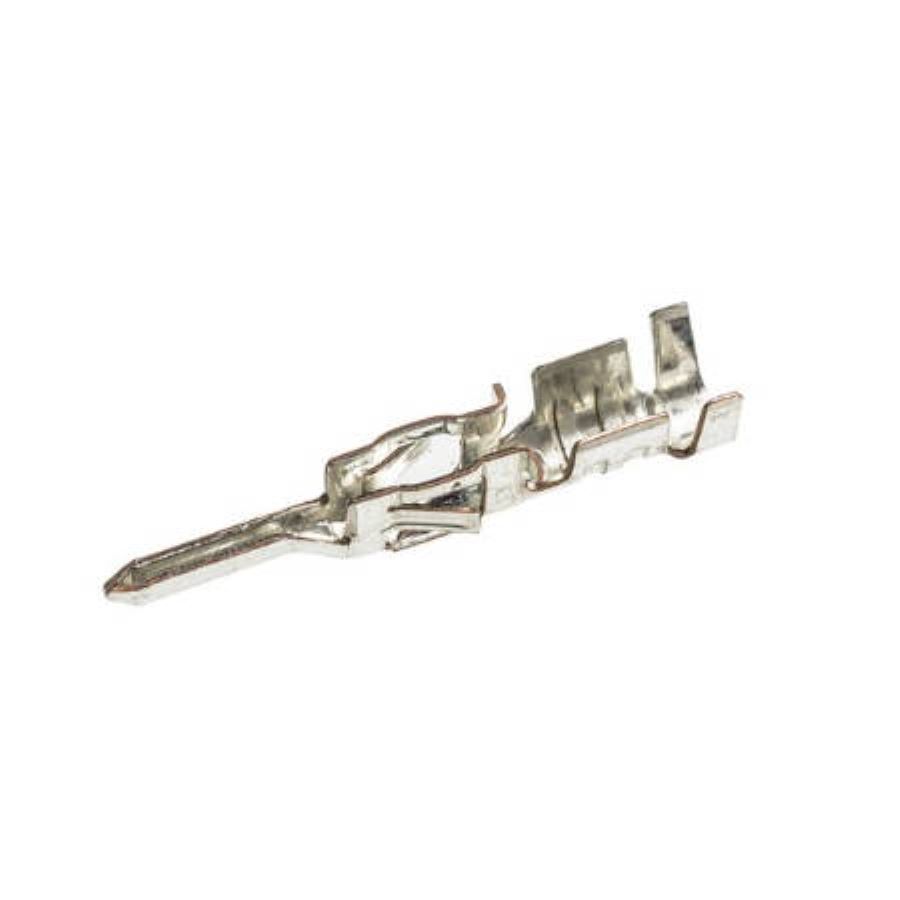

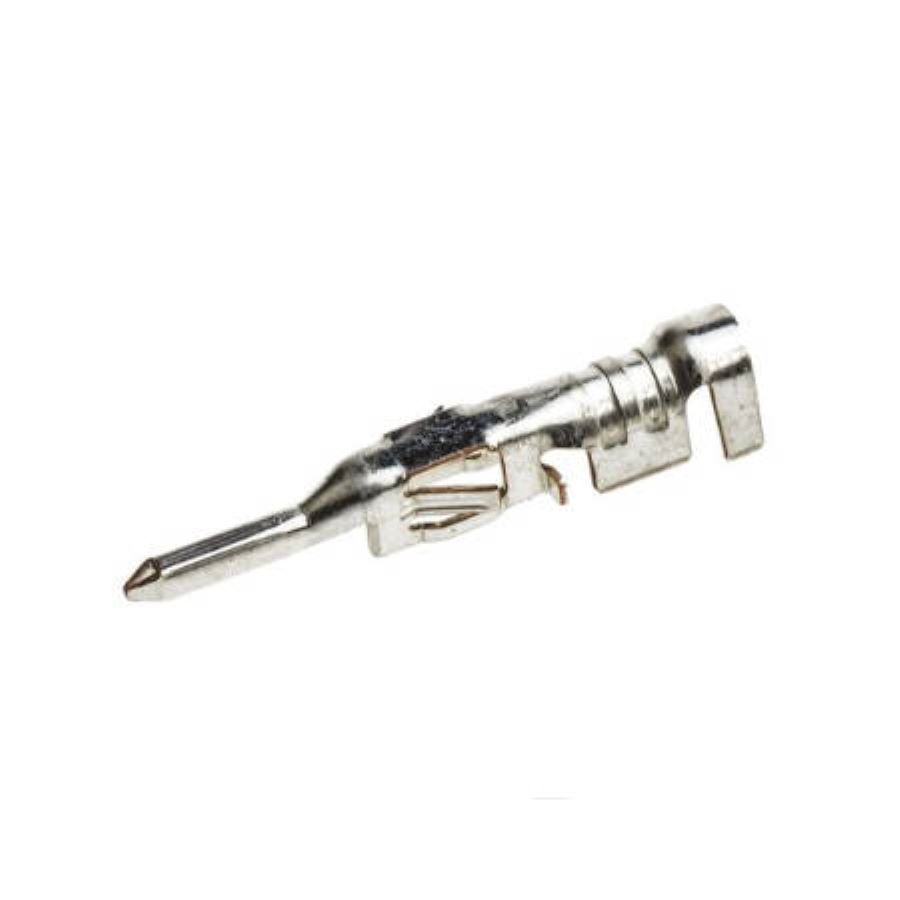

0430310001
Manufacturer:
Molex
Mfr.Part #:
0430310001
Datasheet:
Description:
Headers and Wire Housings Cable Connector, PCB, Pin, Signal Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12.4 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.77 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 2.54 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Bronze, Tin |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 2 |
| Connector Type | Connector, PCB, Pin, Signal |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | |
| Number of Rows | 2 |
| Row Spacing | |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 24 AWG |
| Housing Color | Black |
| Plating | Tin |
| Contact Gender | Male |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | |
| Termination Style | Crimp |
