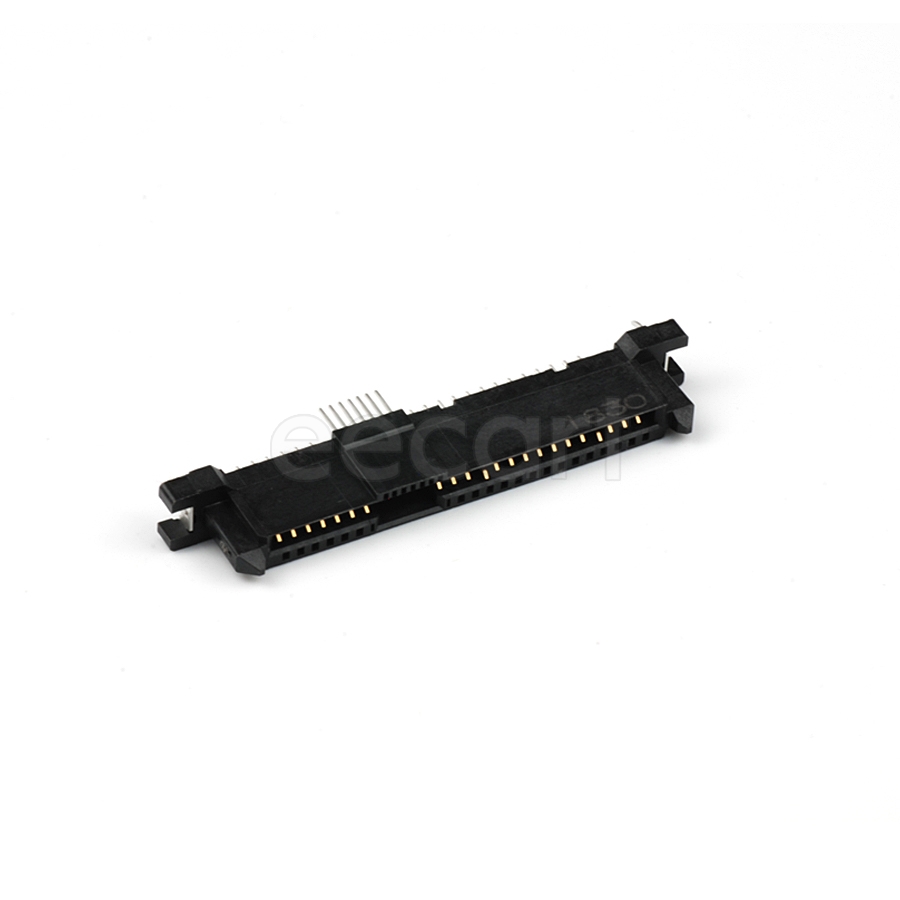

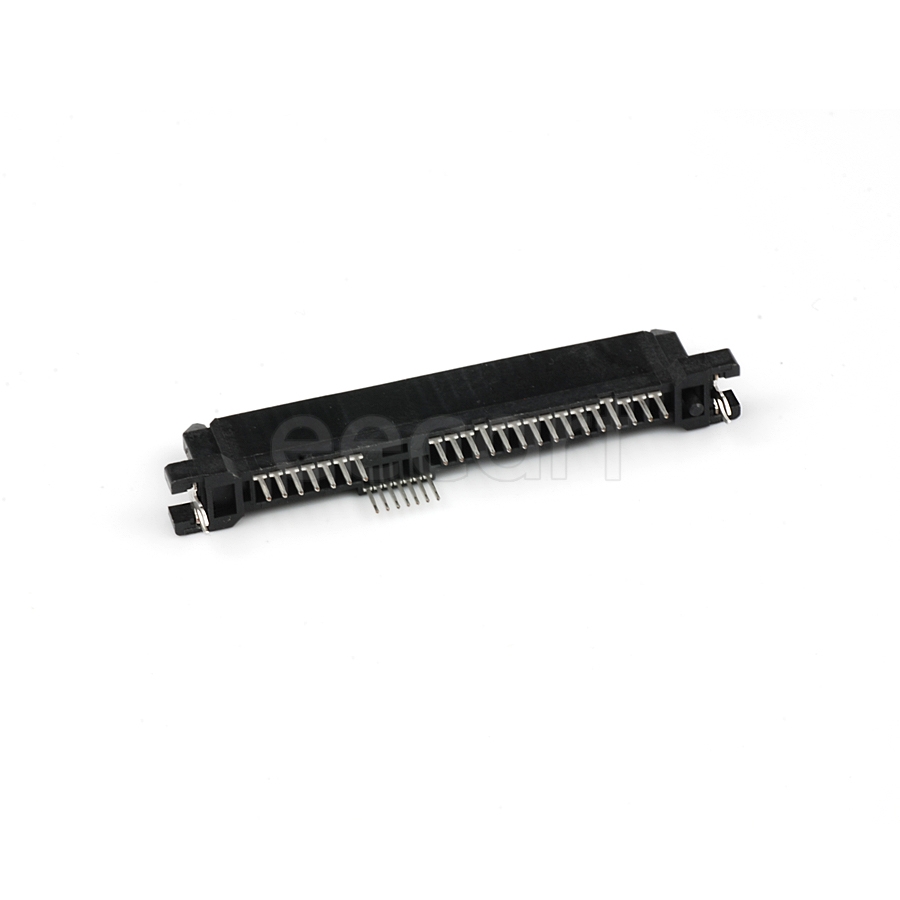

10018182-001LF
Manufacturer:
Amphenol
Mfr.Part #:
10018182-001LF
Datasheet:
Description:
I/O Connectors Through Hole Receptacle Receptacle
| Parameter | Value |
|---|---|
| Length | 45.75 mm |
| Width | 5.5 mm |
| Termination | Solder |
| Voltage Rating (AC) | 500 V |
| Packaging | Tray |
| Voltage Rating | 500 V |
| Depth | 5.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Terminals | 29 |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 29 |
| Connector Type | Receptacle |
| Number of Positions | 29 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
| Mounting Angle | Vertical |
