190020009
Manufacturer:
Molex
Mfr.Part #:
190020009
Datasheet:
Description:

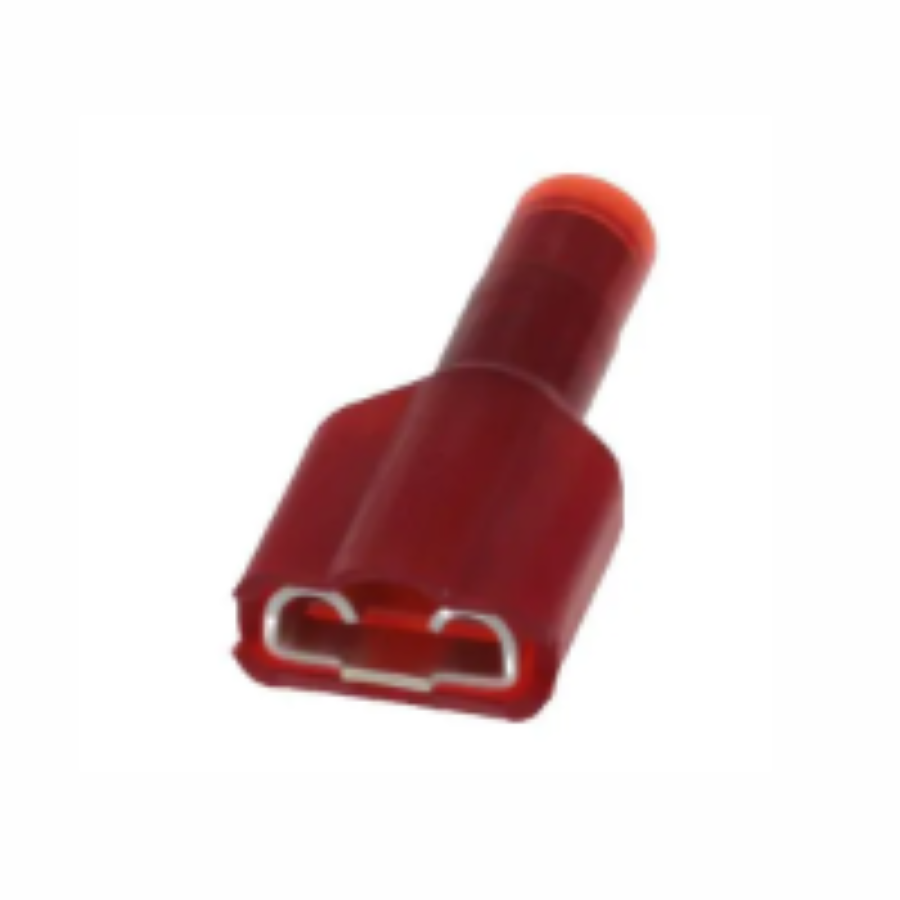

Terminals Free Hanging 22 AWG Female
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Length | 20.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Material | Brass |
| Voltage Rating | 300 V |
| Depth | 8.1 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Flammability Rating | UL94V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Red |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Wire/Cable Gauge | 22 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Stud Size | 4.75 mm x 0.81 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Type | Tab |
| Termination Style | Crimp |
