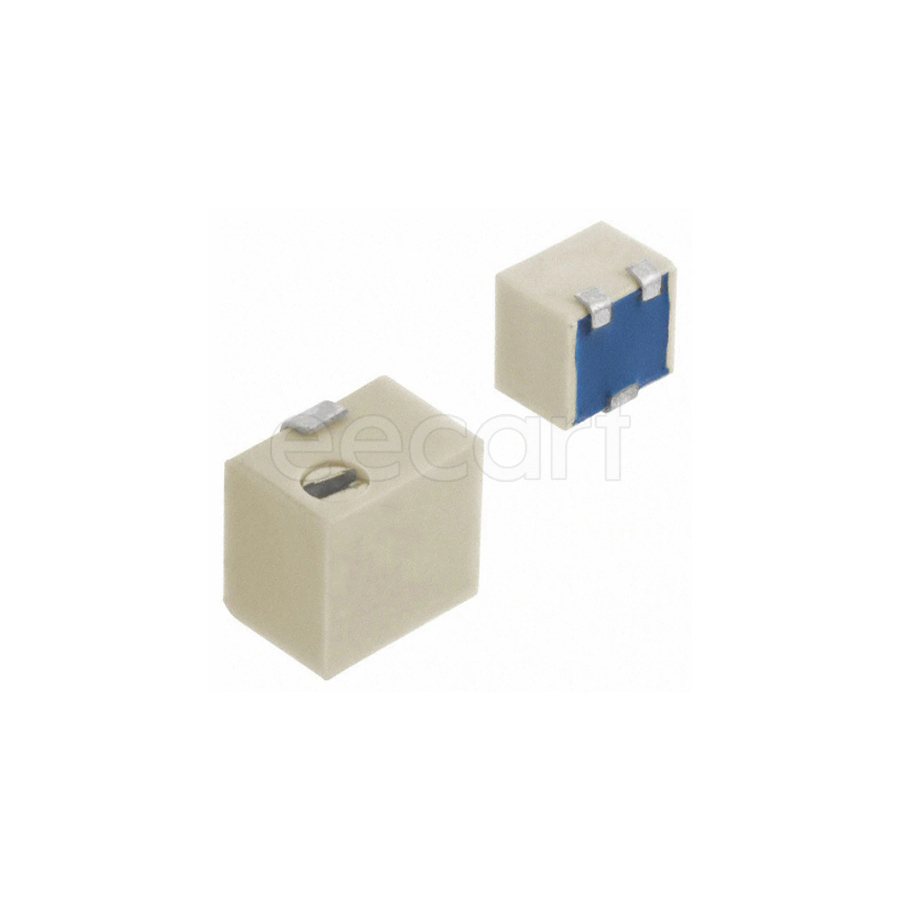

3214J-1-103E
Manufacturer:
Bourns
Mfr.Part #:
3214J-1-103E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 10 kΩ 10 % Number of Turns:5 250 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 500 V |
| Tolerance | 10 % |
| Length | 4.8 mm |
| Width | 4.572 mm |
| Termination | J-Hook |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 10 kΩ |
| Power Rating | 250 mW |
| Composition(Kit Type) | Cermet, Potentiometer |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 5 |
| Taper | Linear |
| Height | 3.7084 mm |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.283 g |
| Military Standard | Not |
| Max Power Dissipation | 250 mW |
| Color | Natural |
Stock: 2830
Distributors
pcbx
pcbxUnit Price$1.58956
Ext.Price$1.58956
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.58956 | $1.58956 |
| 10 | $1.34027 | $13.40270 |
| 25 | $1.25089 | $31.27225 |
| 50 | $1.18669 | $59.33450 |
| 100 | $1.12557 | $112.55700 |
| 300 | $1.05806 | $317.41800 |
| 500 | $0.99458 | $497.29000 |
