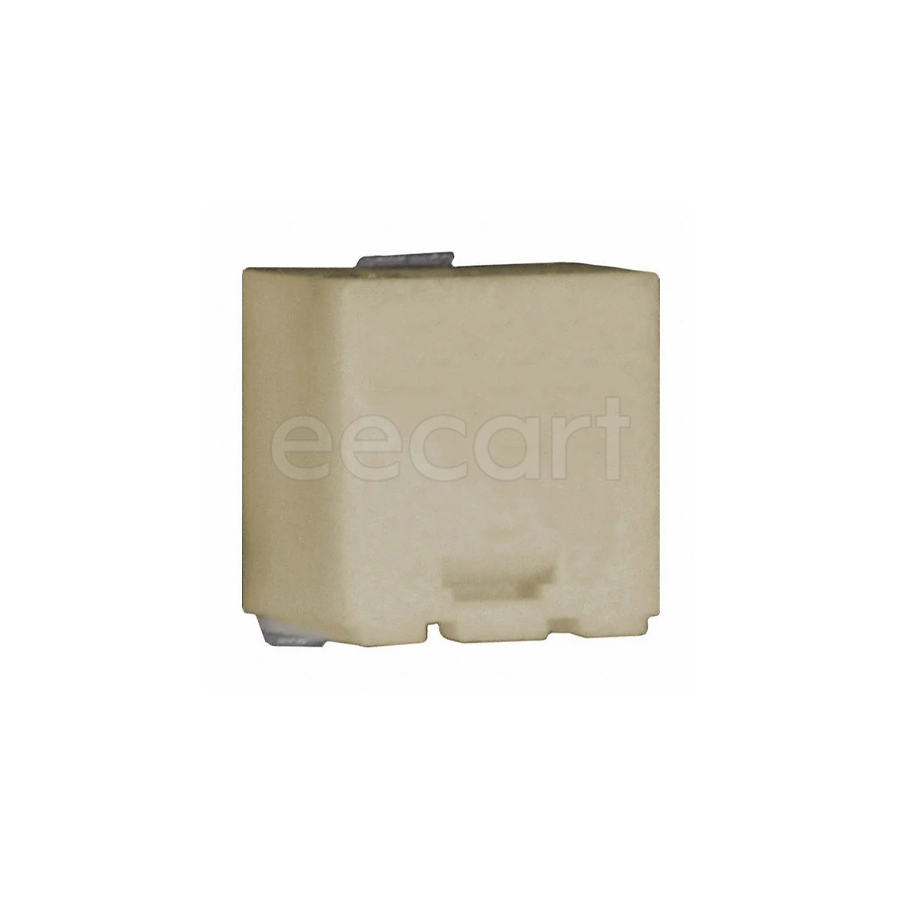

3223J-1-103E
Manufacturer:
Bourns
Mfr.Part #:
3223J-1-103E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 10 kΩ 20 % Number of Turns:11 125 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 200 V |
| Tolerance | 20 % |
| Length | 3.9 mm |
| Termination | J-Hook |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 10 kΩ |
| Power Rating | 125 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 11 |
| Height | 3.9116 mm |
| Voltage Rating | 200 V |
| Depth | 4.47 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.283 g |
| Military Standard | Not |
| Max Power Dissipation | 125 mW |
| Schedule B | 8533400080 |
| Packaging | Reel |
Stock: 437
Distributors
pcbx
pcbxUnit Price$2.72210
Ext.Price$2.72210
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.72210 | $2.72210 |
| 10 | $2.29634 | $22.96340 |
| 25 | $2.13989 | $53.49725 |
| 50 | $2.03387 | $101.69350 |
| 100 | $1.91504 | $191.50400 |
| 300 | $1.78860 | $536.58000 |
| 500 | $1.67053 | $835.26500 |
| 1000 | $1.55854 | $1558.54000 |
