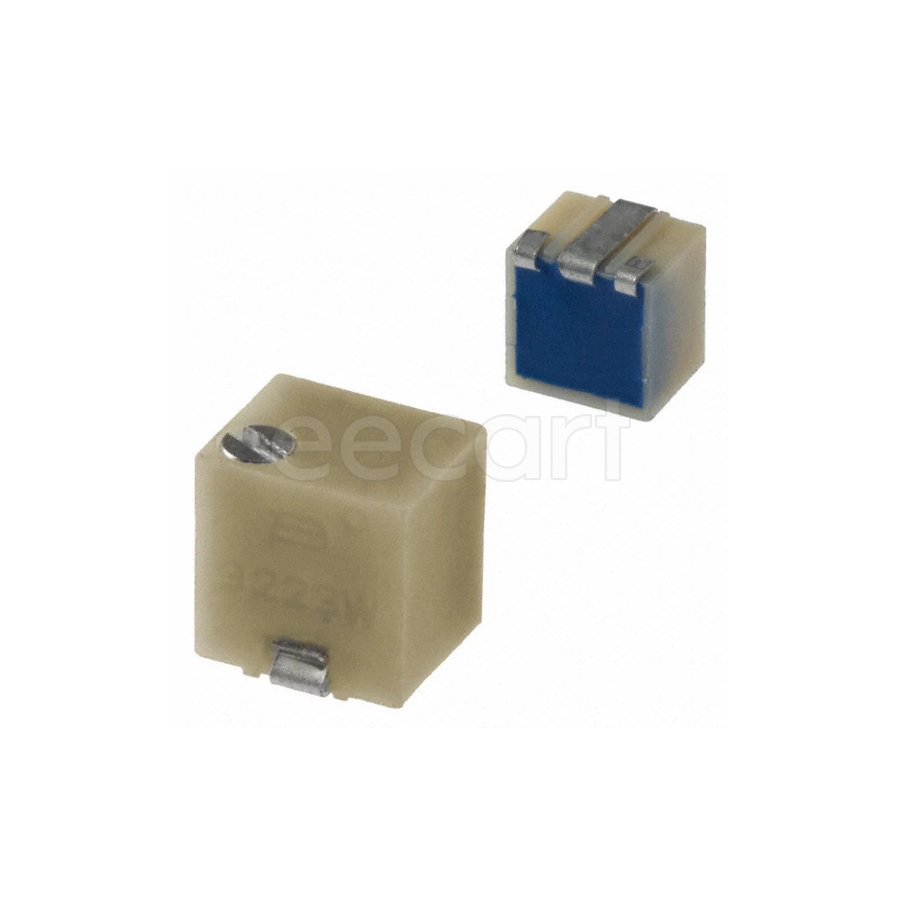

3223W-1-502E
Manufacturer:
Bourns
Mfr.Part #:
3223W-1-502E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 5 kΩ 20 % Number of Turns:11 125 mW
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 3.9 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 5 kΩ |
| Power Rating | 125 mW |
| Composition(Kit Type) | Cermet, Potentiometer |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 11 |
| Taper | Linear |
| Height | 4.1656 mm |
| Voltage Rating | 300 V |
| Depth | 3.52 mm |
| Lead Free | Lead Free |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Weight | 0.283 g |
| Military Standard | Not |
| Max Power Dissipation | 125 mW |
| Color | Natural |
| Schedule B | 8533400080 |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 65
Distributors
pcbx
pcbxUnit Price$2.47844
Ext.Price$2.47844
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.47844 | $2.47844 |
| 10 | $1.83383 | $18.33830 |
| 25 | $1.66455 | $41.61375 |
| 50 | $1.64260 | $82.13000 |
| 100 | $1.62094 | $162.09400 |
| 300 | $1.53757 | $461.27100 |
| 500 | $1.45851 | $729.25500 |
| 1000 | $1.37045 | $1370.45000 |
| 3000 | $1.34847 | $4045.41000 |
| 5000 | $1.32685 | $6634.25000 |
