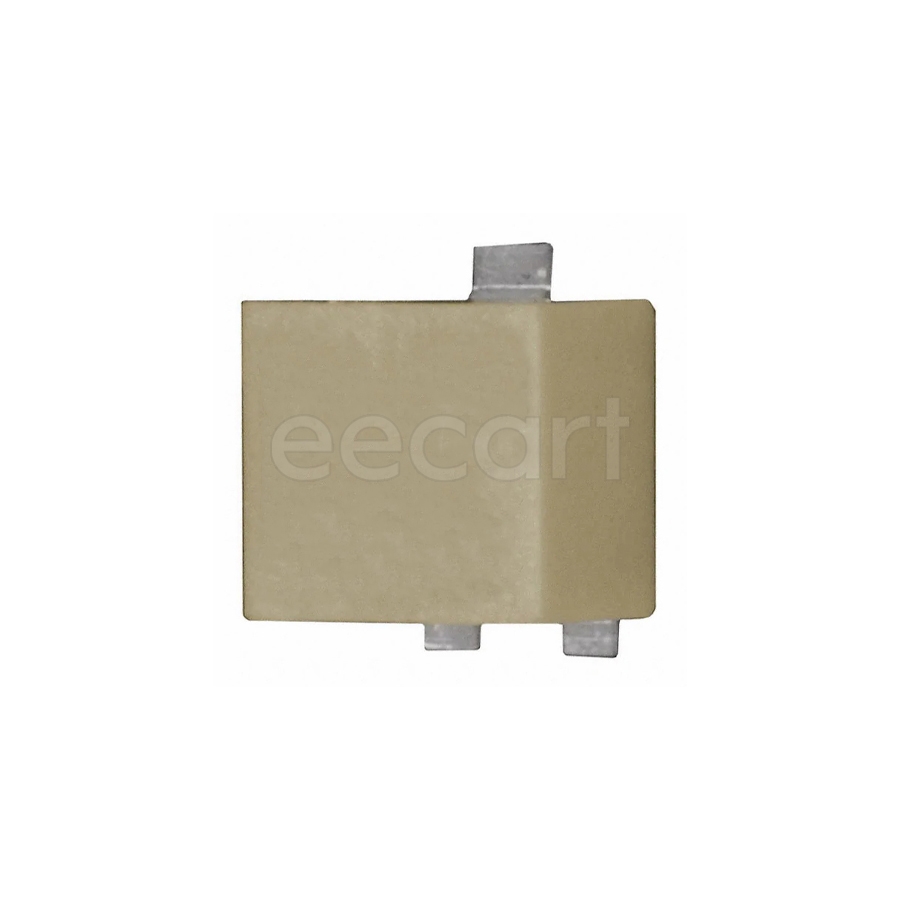

3224G-1-503E
Manufacturer:
Bourns
Mfr.Part #:
3224G-1-503E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 50 kΩ 10 % Number of Turns:12 250 mW
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 4.8 mm |
| Width | 4.572 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 50 kΩ |
| Power Rating | 250 mW |
| Composition(Kit Type) | Cermet, Potentiometer |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 12 |
| Taper | Linear |
| Height | 3.9116 mm |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Depth | 6 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 0.283 g |
| Contact Plating | Tin |
| Military Standard | Not |
| Max Power Dissipation | 250 mW |
| Schedule B | 8533400080 |
| RoHS | Compliant |
Stock: 471
Distributors
pcbx
pcbxUnit Price$2.47844
Ext.Price$2.47844
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.47844 | $2.47844 |
| 10 | $2.09030 | $20.90300 |
| 25 | $1.85263 | $46.31575 |
| 50 | $1.80192 | $90.09600 |
| 100 | $1.75260 | $175.26000 |
| 300 | $1.66581 | $499.74300 |
| 500 | $1.58333 | $791.66500 |
| 1000 | $1.36447 | $1364.47000 |
| 3000 | $1.31661 | $3949.83000 |
| 5000 | $1.27043 | $6352.15000 |
