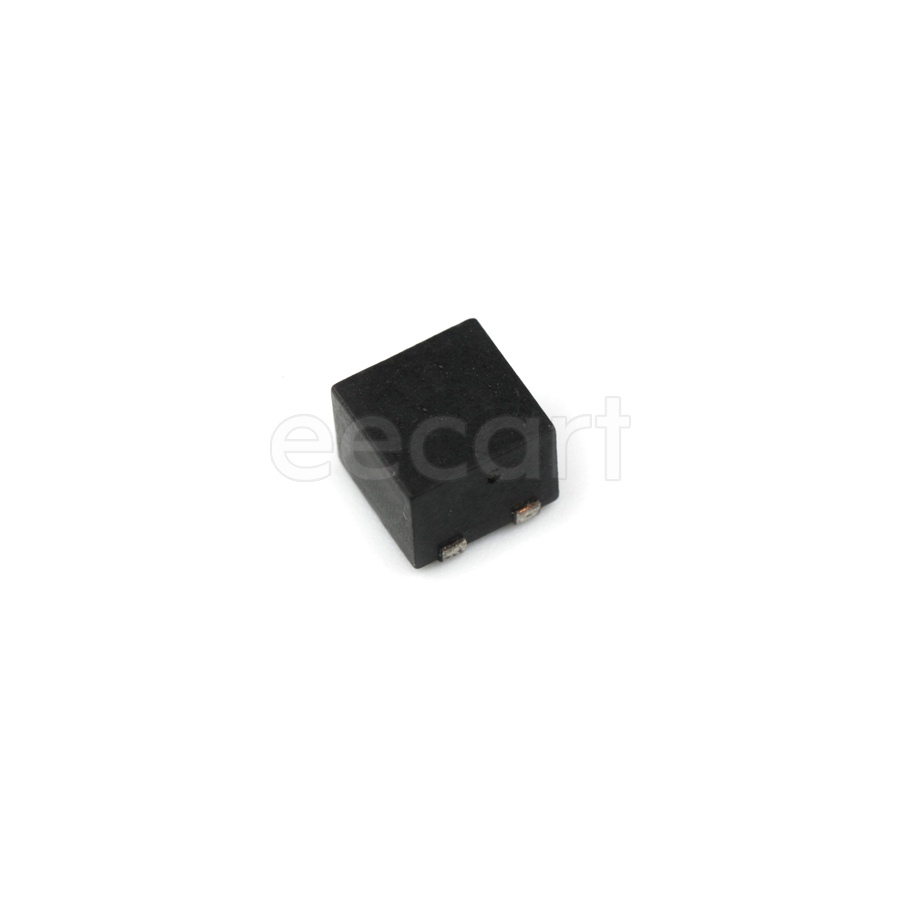

3224J-1-103E
Manufacturer:
Bourns
Mfr.Part #:
3224J-1-103E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 10 kΩ 10 % Number of Turns:11 250 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 4.8 mm |
| Width | 4.8 mm |
| Termination | J-Hook |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 300 V |
| Resistance | 10 kΩ |
| Power Rating | 250 mW |
| Composition(Kit Type) | Cermet, Potentiometer |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 11 |
| Taper | Linear |
| Height | 3.71 mm |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Weight | 0.283 g |
| Contact Plating | Tin |
| Type | Potentiometer |
| Military Standard | Not |
| Max Power Dissipation | 250 mW |
| Color | Natural |
| Schedule B | 8533400080 |
Stock: 795
Distributors
pcbx
pcbxUnit Price$1.16739
Ext.Price$1.16739
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.16739 | $1.16739 |
| 10 | $0.96454 | $9.64540 |
| 25 | $0.87806 | $21.95150 |
| 50 | $0.79933 | $39.96650 |
| 100 | $0.72766 | $72.76600 |
| 300 | $0.69963 | $209.88900 |
| 500 | $0.67269 | $336.34500 |
| 1000 | $0.64652 | $646.52000 |
