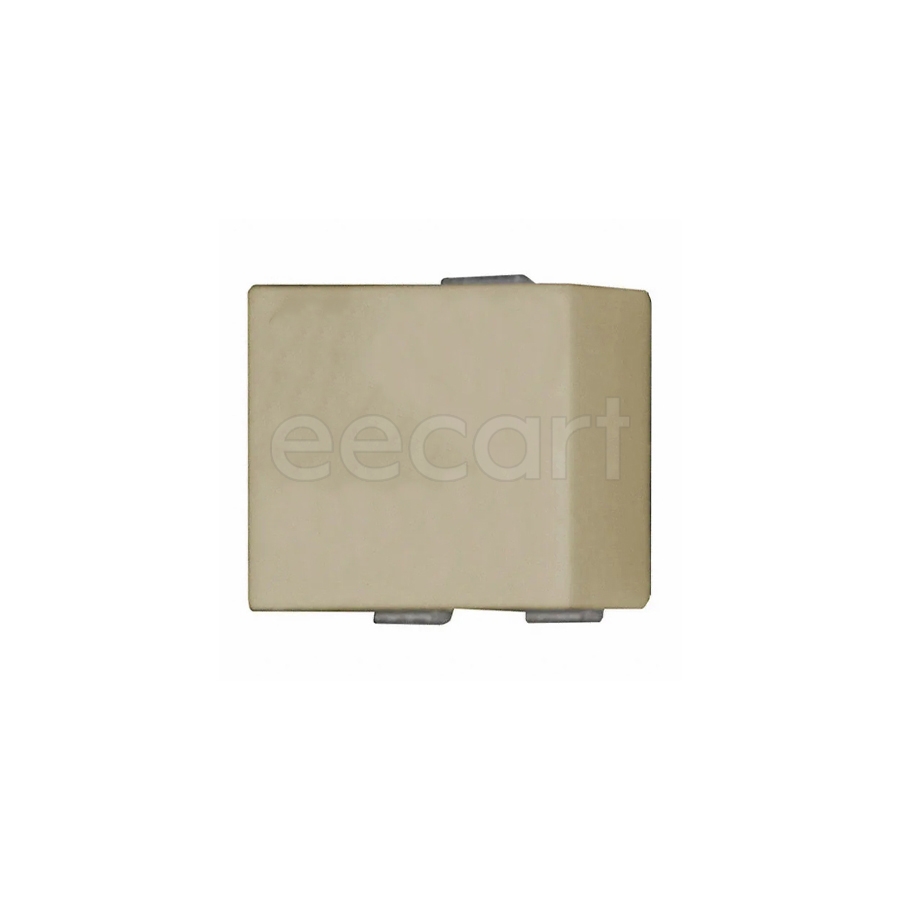

3224J-1-503E
Manufacturer:
Bourns
Mfr.Part #:
3224J-1-503E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 50 kΩ 10 % Number of Turns:12 250 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 4.8 mm |
| Width | 4.572 mm |
| Termination | J-Hook |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 300 V |
| Resistance | 50 kΩ |
| Power Rating | 250 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 12 |
| Taper | Linear |
| Height | 3.7084 mm |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Weight | 283.495231 mg |
| Military Standard | Not |
| Max Power Dissipation | 250 mW |
| Color | Natural |
| Schedule B | 8533400080 |
| RoHS | Compliant |
Stock: 448
Distributors
pcbx
pcbxUnit Price$1.30147
Ext.Price$1.30147
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30147 | $1.30147 |
| 10 | $1.06675 | $10.66750 |
| 25 | $0.96861 | $24.21525 |
| 50 | $0.87950 | $43.97500 |
| 100 | $0.79860 | $79.86000 |
| 300 | $0.76485 | $229.45500 |
| 500 | $0.73254 | $366.27000 |
| 1000 | $0.70257 | $702.57000 |
