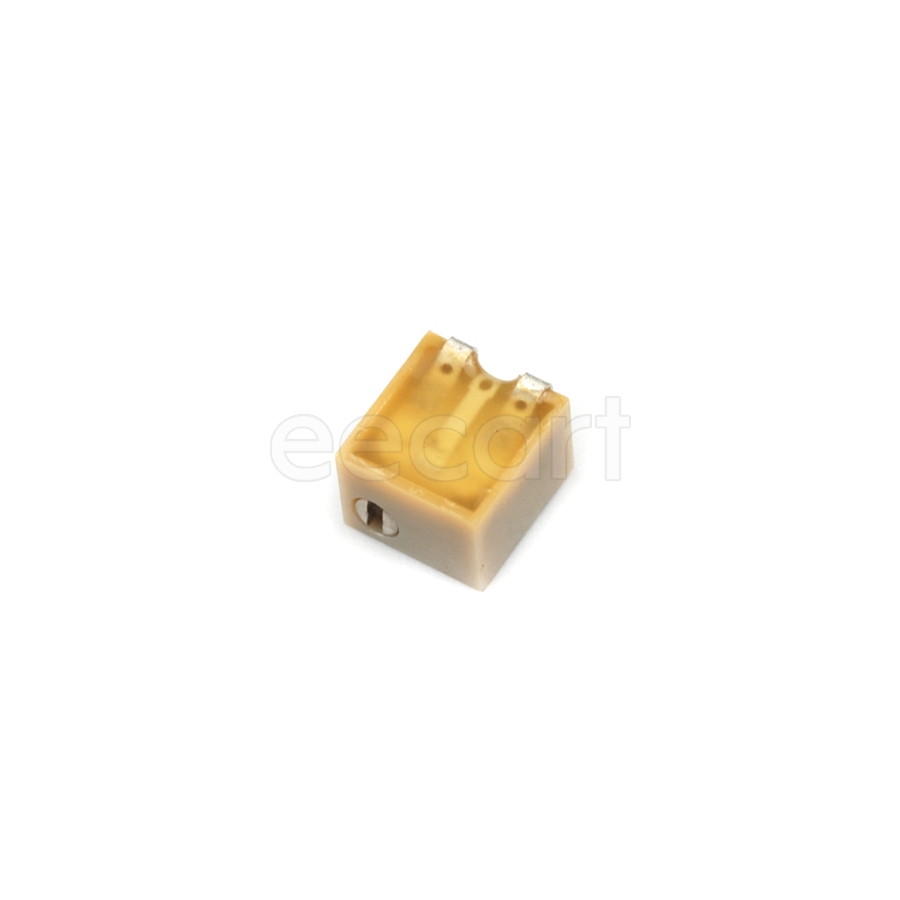

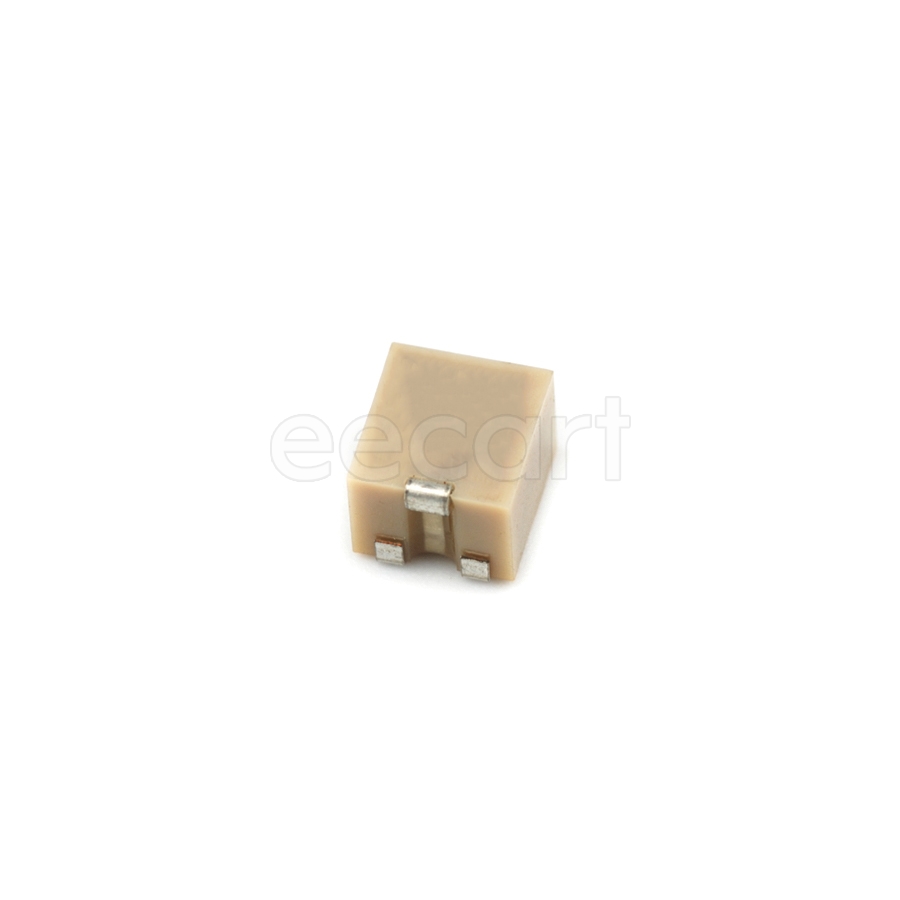

3224W-1-201E
Manufacturer:
Bourns
Mfr.Part #:
3224W-1-201E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 200 Ω 10 % Number of Turns:12 250 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 4.8 mm |
| Width | 3.5306 mm |
| Termination | J-Hook |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 200 Ω |
| Power Rating | 250 mW |
| Composition(Kit Type) | Cermet, Potentiometer |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 12 |
| Taper | Linear |
| Height | 5.08 mm |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Depth | 3.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.283 g |
| Contact Plating | Tin |
| Type | Potentiometer |
| Military Standard | Not |
| Max Power Dissipation | 250 mW |
| Color | Natural |
| Schedule B | 8533400080 |
Stock: 1898
Distributors
pcbx
pcbxUnit Price$1.25779
Ext.Price$1.25779
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.25779 | $1.25779 |
| 10 | $1.03056 | $10.30560 |
| 25 | $0.95670 | $23.91750 |
| 50 | $0.88814 | $44.40700 |
| 100 | $0.82449 | $82.44900 |
| 300 | $0.76540 | $229.62000 |
| 500 | $0.71053 | $355.26500 |
| 1000 | $0.68143 | $681.43000 |
