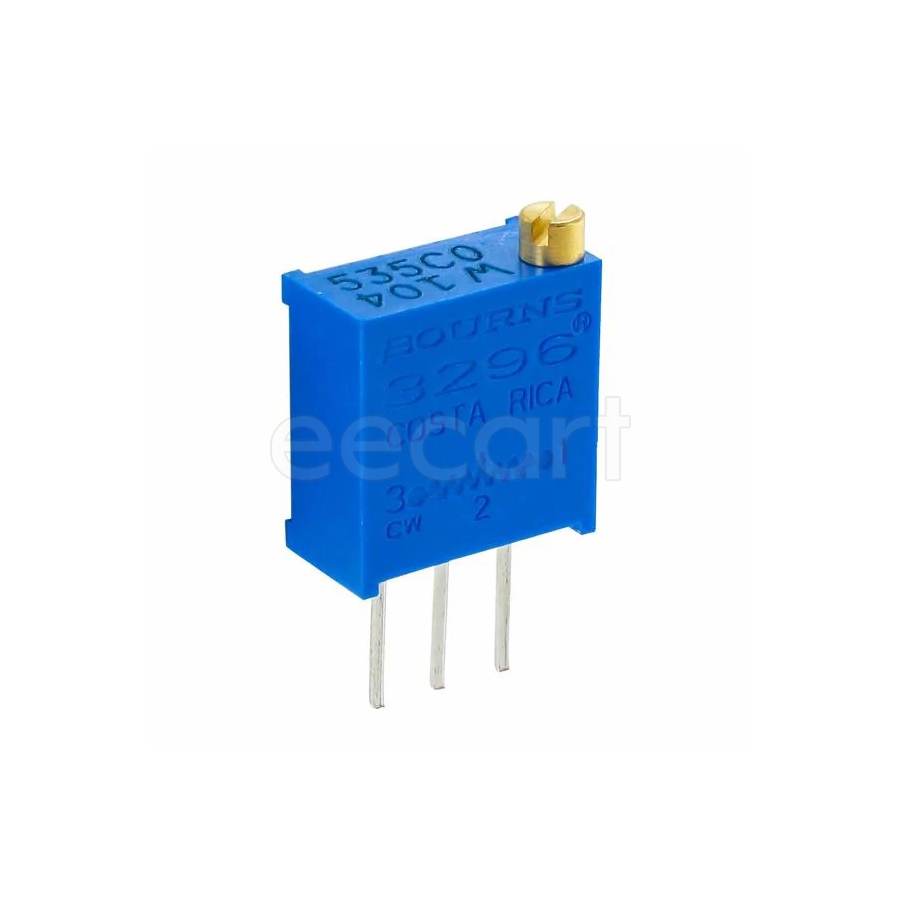

3296W-1-103LF
Manufacturer:
Bourns
Mfr.Part #:
3296W-1-103LF
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 10 % Number of Turns:25 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 1.55 mm |
| Width | 850 µm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Voltage Rating (AC) | 300 V |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 25 |
| Taper | Linear |
| Height | 450 µm |
| Packaging | Reel |
| Voltage Rating | 75 V |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 2.012816 mg |
| Contact Plating | Tin |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Color | Blue |
| Schedule B | 8533400080 |
Stock: 12440
Distributors
pcbx
pcbxUnit Price$0.71674
Ext.Price$0.71674
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71674 | $0.71674 |
| 10 | $0.61066 | $6.10660 |
| 25 | $0.55424 | $13.85600 |
| 50 | $0.50304 | $25.15200 |
| 100 | $0.44552 | $44.55200 |
| 300 | $0.43547 | $130.64100 |
| 500 | $0.42564 | $212.82000 |
| 1000 | $0.41341 | $413.41000 |
